Autel IA700 ADAS All-Systems Calibration System

Description

Autel MaxiSYS IA700AS ÔÇö All-Systems ADAS Calibration with Alignment Pre-Check (No Tablet)

The IA700AS bundles the IA700 frame together with the complete all-systems calibration target set ÔÇö providing everything required to perform camera, radar, lidar, and night vision ADAS calibrations. A compatible MaxiSYS 909, MS919, or MS Ultra tablet and a separate ADAS calibration software upgrade card are required and must be sourced independently. Shops that already own a supported Autel tablet and want the full calibration hardware suite without paying for a redundant tablet will find this the appropriate configuration.

What’s Included

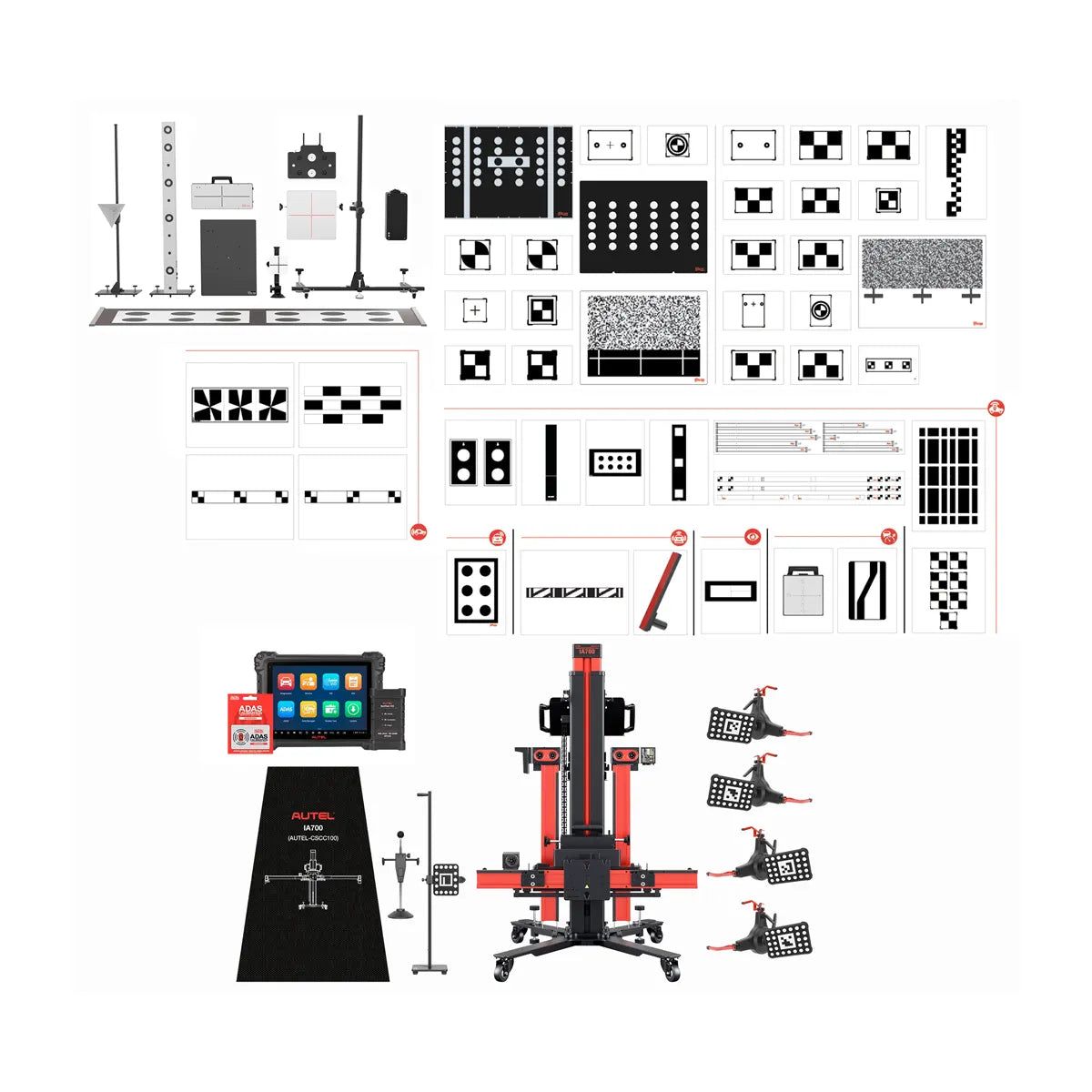

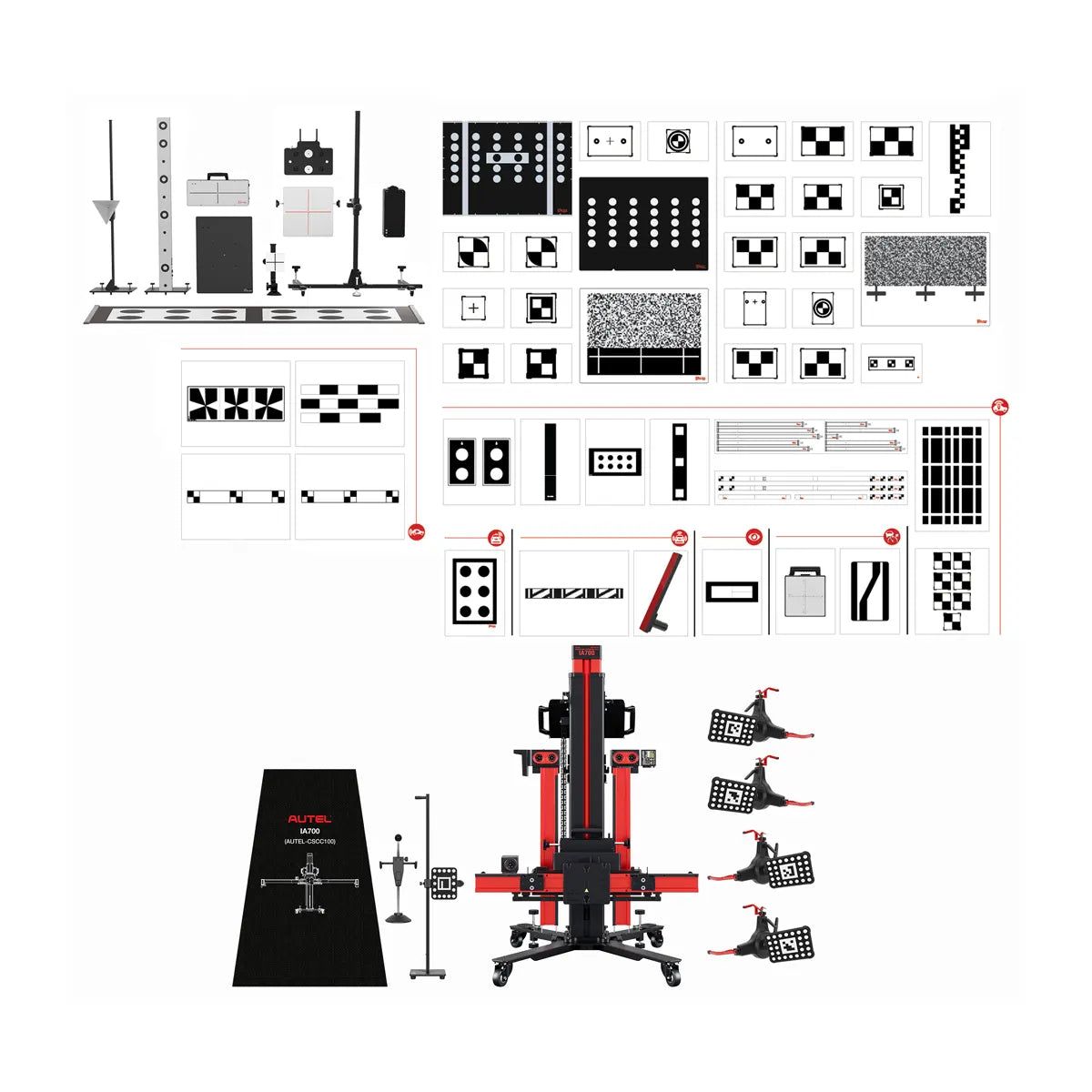

• IA700 Calibration Frame with robotic crossbar and 6 HD cameras
• LDW targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
• Target case
• Radar, lidar, and night vision calibrators (all-systems equipment)
• AVM (Around-View Monitoring) calibration mats for applicable vehicles
• Four tire clamps with camera targets, steering wheel lock, brake chocks, power supply, alignment aid, frame cover
• One-year Limited Warranty

What You Need to Supply

• MaxiSYS 909, MS919, or MS Ultra tablet
• ADAS calibration software upgrade card

All-Systems Coverage

This package addresses every significant ADAS system category found in vehicles currently in production ÔÇö LDW camera systems spanning 13 brands, radar-based adaptive cruise control and forward collision warning, AVM systems, lidar, and night vision. For shops committed to handling any ADAS calibration job that comes through the door without turning away work, this target set delivers complete coverage.

IA700 Platform Core Features

Fully Optical Target Placement ÔÇö 6x Faster Than Mechanical

Rather than relying on tape measures and manual measurements, the IA700 deploys six high-definition cameras built into the crossbar alongside camera-equipped tire clamps to optically determine where targets and patterns sit in relation to the vehicle. The connected MaxiSYS tablet continuously calculates current angle, distance, and offset, presenting straightforward adjustment instructions on screen. Each parameter is confirmed with a green checkmark once the correct position is reached. Autel reports the optical approach cuts setup time by 6x compared to conventional mechanical measurement methods.

Robotic Crossbar with Automatic Height Adjustment

The removable crossbar houses six HD tracking cameras that continuously monitor the positions of tire clamp targets. Frame height is set automatically through robotic movement, achieving vertical calibration positioning to 0.02┬░ accuracy ÔÇö matching the spec of the IA1000. There is no manual height cranking or estimating involved.

Integrated Wheel Alignment Pre-Check

Alignment pre-check is built into every IA700 package. Before any ADAS calibration work begins, the system uses optical measurement to assess the vehicle’s current alignment against OEM tolerances. A vehicle that’s within spec can proceed to calibration; one that isn’t gets flagged immediately. This step matters: vehicles with alignment outside OEM tolerances produce ADAS calibrations that are inaccurate and potentially dangerous. The pre-check also generates a documented report confirming the vehicle was within OEM tolerances prior to calibration ÔÇö a meaningful record for liability and quality control purposes.

Unlevel Floor Compensation

Shop floors are rarely perfectly level, and mobile calibration environments introduce even greater surface variability. The IA700 handles this directly ÔÇö the technician selects the surface condition (level, unlevel, or on a rack) and the system compensates accordingly. This removes a real-world failure point that affects systems requiring a perfectly level surface to function correctly.

Quick Disassembly for Mobile Use

The IA700 can be broken down into 5 primary components in under 90 seconds, making bay-to-bay transport or moves between locations practical. An included dust cover protects the system during storage. For operations performing mobile ADAS calibration at dealerships, collision repair facilities, or fleet maintenance sites, the IA700’s portability translates directly into operational flexibility.

Target and System Compatibility

The IA700 shares its targets, patterns, and calibration components with Autel’s MA600 and IA900 systems. A shop already running either of those platforms can add an IA700 as a second calibration bay without acquiring a duplicate set of targets ÔÇö existing hardware is compatible across all three systems. For MA600 operators specifically, the IA700 introduces optical positioning and alignment pre-check: a meaningful step forward in both speed and measurement accuracy.

Tablet Compatibility

A MaxiSYS 909, MS919, or MS Ultra tablet paired with an ADAS calibration software upgrade card is required to run static and dynamic calibrations on the IA700. Packages carrying a “T” suffix come with the MaxiSYS 909 S2 tablet included; packages without the “T” suffix require a compatible tablet to be supplied by the shop.

IA700 Package Lineup

• IA700 ÔÇö Frame only, alignment pre-check only (no tablet, no calibration targets)
• IA700T ÔÇö Frame + MaxiSYS 909 S2 Tablet (alignment pre-check + tablet, no ADAS targets)
• IA700LDW ÔÇö Frame + LDW targets (no tablet)
• IA700LDWT ÔÇö Frame + MaxiSYS 909 S2 + LDW targets
• IA700AS ÔÇö Frame + all-systems targets (no tablet)
• IA700AST ÔÇö Frame + MaxiSYS 909 S2 + all-systems targets
