Autel MaxiSys IA1000 Automated Alignment and ADAS System

Description

Autel MaxiSys IA1000 Automated Alignment and ADAS System

Autel’s IA1000 represents the pinnacle of combined wheel alignment and ADAS calibration technology ÔÇö a unified platform capable of four-wheel alignment, static ADAS target calibration, and dynamic calibration all within a single, continuous workflow. For shops performing windshield replacements, front-end repairs, and camera or radar R&R at high daily volume, the IA1000 is purpose-built for that workload and that standard of precision.

At $29,999, this is a significant capital equipment investment. Below is everything you need to evaluate before committing.

What the IA1000 Does

• Automated Four-Wheel Alignment: Complete wheel alignment with automated arm positioning, live data acquisition, and guided adjustment sequences ÔÇö no wrestling manual measuring heads into position.
• Integrated ADAS Static Calibration: Target-based calibration for front-facing cameras, forward radar (ACC), surround-view/AVM systems, night vision cameras, and blind-spot monitoring. Targets are placed automatically to OEM-specified distances derived from vehicle data.
• Dynamic Calibration Support: When a road-drive calibration is required, the IA1000 workflow prepares the vehicle and provides live technician guidance through the full drive cycle.
• Automated Target Positioning: Based on vehicle make, model, and year, the system moves targets into their correct positions ÔÇö eliminating the manual tape-measure setup and guesswork that slows down lower-tier systems.
• MaxiSYS Tablet Integration: Compatible with Autel MaxiSYS Ultra, MS909, or MS919 tablets running Autel ADAS software, delivering fully guided calibration workflows, OBD2 diagnostics, and post-calibration verification.
• Vehicle Coverage: Domestic, Asian, and European vehicles. Coverage by system type and model year is available on request ÔÇö reach out before purchasing if you have specific fleet requirements.

Who Needs the IA1000

This system is engineered for shops where separating alignment and ADAS calibration into two bays with two independent setups is not a viable option. It is the right fit for:

• High-volume collision repair centers handling windshield R&R and front-end work on ADAS-equipped vehicles every day
• Multi-bay alignment shops looking to add ADAS revenue without constructing a dedicated calibration room
• Dealership service departments servicing brands with heavy ADAS content ÔÇö German marques, Japanese luxury vehicles, and domestic trucks equipped with adaptive cruise and lane-keep systems
• Independent shops positioning ADAS calibration as a primary revenue line rather than a referral source

If your shop is currently performing fewer than 8ÔÇô10 ADAS calibrations per week, the IA1000 is likely more capability than your current volume justifies. The MA600 mobile frame or a CSC-based system at a lower price point may be a smarter entry point. Once you reach ÔÇö or are growing toward ÔÇö that throughput level, the IA1000’s automation more than recovers its cost through technician time savings and rework reduction.

Calibration Workflow

• Vehicle pulls onto the alignment rack
• Technician scans the VIN or selects the vehicle ÔÇö system retrieves OEM ADAS calibration requirements
• Automated arms position wheel targets; system acquires alignment readings
• ADAS targets are automatically placed to OEM-specified positions
• MaxiSYS tablet guides the technician through the static calibration sequence and confirms sensor lock
• Post-calibration verification confirms all systems are reading within tolerance
• Calibration report is generated for the customer file and insurance documentation

Technical Specifications

• Alignment Type: Four-wheel, camera-based or sensor-based (confirm configuration at time of purchase)
• ADAS Calibration Types: Static (target-based), dynamic (road-drive guided)
• ADAS Systems Covered: Forward camera, ACC radar, AVM/surround-view, night vision, blind-spot monitoring, lane departure
• Compatible Tablets: Autel MaxiSYS Ultra, MS909, MS919, Elite II (sold separately or as a bundle ÔÇö ask us)
• Dimensions and Power: Contact us for the current spec sheet; configurations vary by market
• Warranty: Full Autel manufacturer warranty; support through ADAS Calibration Tools

Configurations and Upgrade Path

• IA1000 (AULIA1000) ÔÇö $29,999: Full automated alignment and ADAS calibration system. This listing.

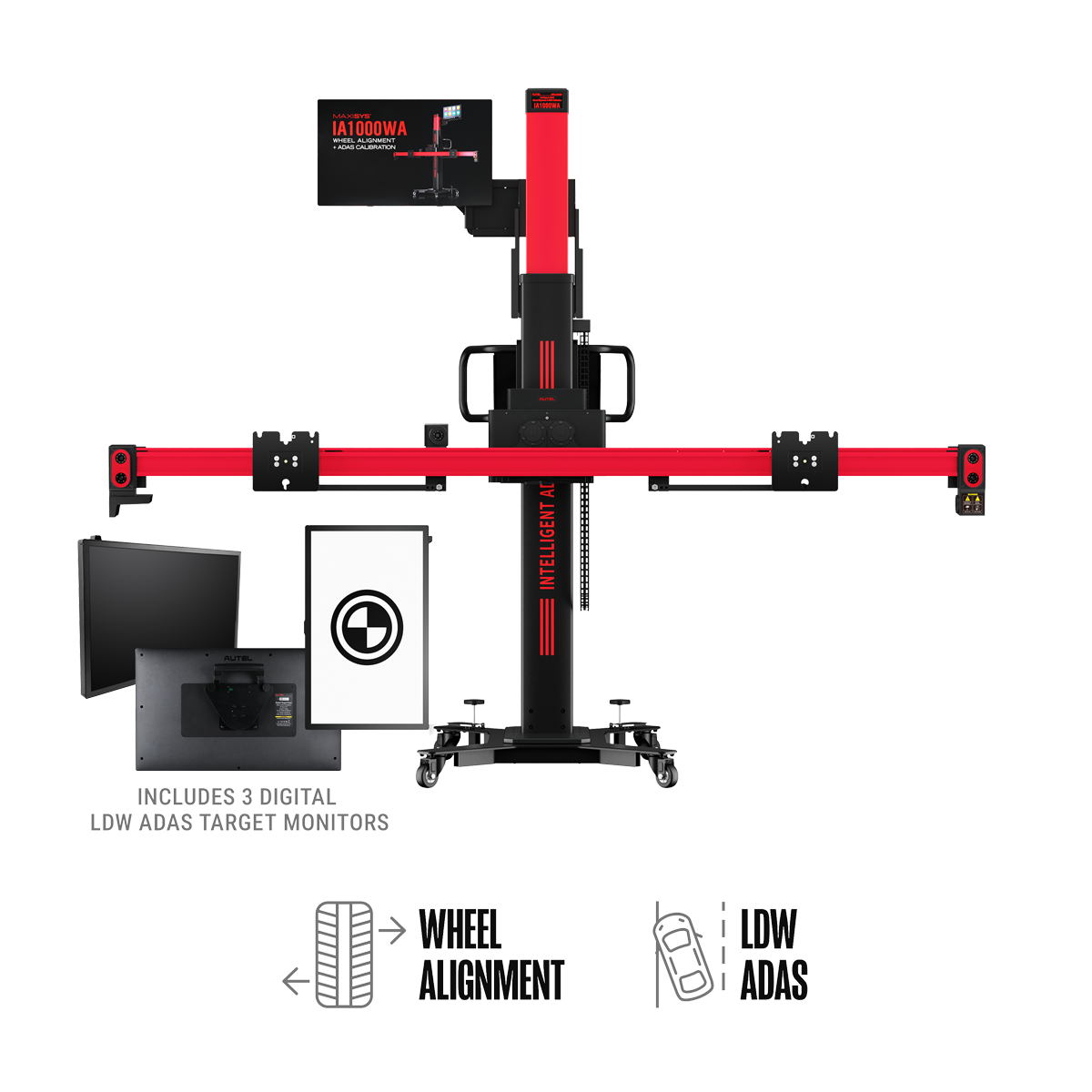

• IA900WA: Autel’s previous-generation combined alignment and ADAS platform ÔÇö still highly capable at a lower price point. Ask us how the two stack up for your bay configuration.
• MA600 + CSC Frame: Mobile ADAS calibration without alignment integration ÔÇö the better choice for shops that already operate a dedicated aligner.
• MaxiSYS Ultra or MS919 tablet: Required for full IA1000 functionality. Bundle pricing is available.

When to Choose the IA1000 vs. Stepping Down

The IA1000 makes sense when alignment and ADAS calibration are happening on the same vehicle during the same visit ÔÇö which describes the vast majority of front-end and windshield work on 2018 and newer vehicles. Compared to manual target placement, the automation saves 20ÔÇô40 minutes per job, and at high volume that time compounds quickly into real labor savings.

If you already have a quality aligner in your bay and only need to add ADAS capability, step down to the MA600 or CSC frame. There is no reason to pay for alignment integration you will not use.

Why Buy From ADAS Calibration Tools?

• Autel specialists ÔÇö we know the complete lineup and will give you an honest assessment of whether this system fits your operation
• Free shipping on this and all equipment orders
• Free tech support ÔÇö available both before and after the sale
• Full manufacturer warranty backed by our team, not a third-party service center
• Straightforward upgrade guidance ÔÇö if the IA900WA or MA600 is the better match for your volume and workflow, we will tell you so

Contact ADAS Calibration Tools for fast answers and expert guidance on the right system for your shop.
