Topdon Mobile ADAS Complete Shop Kit with Phoenix Elite Tablet
Built for shops that want to handle camera and radar calibration without outsourcing, this all-in-one ADAS calibration package combines the Topdon Phoenix Mobile ADAS frame ÔÇö a fully collapsible stand with every target included ÔÇö and the Phoenix Elite diagnostic tablet. At $12,755, the kit delivers a turn-key solution covering both the diagnostic scan tool and the calibration hardware, ready to put to work from the moment it arrives.
Shops already performing collision repair, alignment, or windshield replacement that are still sending ADAS calibration work out will find this the logical next step. The frame breaks down compactly enough to fit in a car trunk, making it equally practical for on-site use at dealerships, fleet yards, or customer locations when the job calls for it.

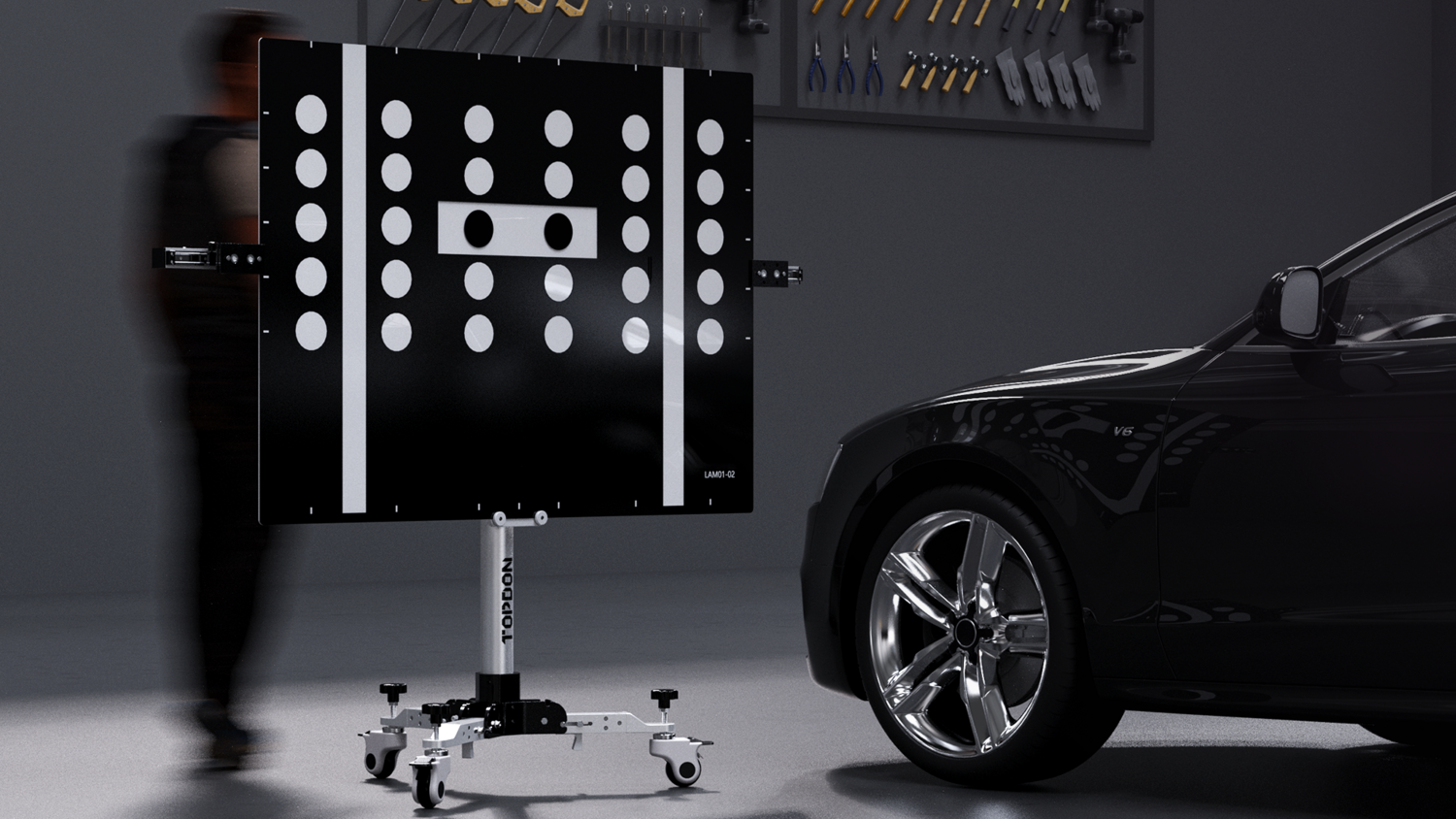

Phoenix Mobile ADAS Frame
- Collapsible design: Foldable arms and folding base legs allow the entire frame to collapse for storage and transport. Compatible with most vehicle trunks.
- 5-laser positioning system: A high-precision laser array guides accurate placement of the frame and targets relative to the vehicle, taking the guesswork out of setup.
- 360-degree swivel base wheels: The multifunctional base rolls freely, locks in position, and adjusts in height to account for uneven shop floor surfaces.
- Center-positioning micro-adjustment: Make precise lateral corrections without dismantling the entire setup.
- Complete target set included: Every calibration target and panel is included in the kit ÔÇö no additional target purchases are needed to begin working.
- Setup time: Technicians with experience on the system report being fully set up and running calibrations in approximately 30 minutes.
- Coverage: Handles both static and dynamic calibration for forward cameras, radar, surround-view (AVM), and night-vision systems across a wide range of vehicle makes and models.
Phoenix Elite Diagnostic Tablet
- Wireless VCI with CAN FD: Connects to current-generation vehicles via CAN FD wirelessly, with no tethered connection required between the VCI and tablet.
- Auto VIN detection: Automatically reads the VIN upon connection and retrieves vehicle-specific data ÔÇö faster workflow and fewer wrong-vehicle errors that lead to comebacks.
- Topology mapping: Presents the vehicle’s entire module network on a single screen with color-coded status indicators, making it straightforward to identify network communication faults early.
- Pre-scan and post-scan reporting: Record a complete DTC snapshot before the repair begins and generate a clean scan at job completion. Both reports print out for customer records and insurance documentation.
- ADAS software integration: Connect the Phoenix Elite to the calibration frame and execute the full calibration workflow directly from the tablet. The ADAS software is added as a downloadable upgrade on the device.
- Guided functions for VAG vehicles: Volkswagen and Audi diagnostics benefit from step-by-step guided procedures driven by retrieved fault codes.
- Active tests and special functions: Coding, initialization, adaptations, and memory resets are supported across applicable vehicle systems.
What’s in the Box
- Topdon Phoenix Mobile ADAS calibration frame
- Complete calibration target and panel set
- Phoenix Elite diagnostic tablet
- Wireless VCI module
- All associated cables and carry/storage hardware
Contact us to confirm the exact contents list for your specific kit configuration before ordering.
Which Shop Is This For?
- Collision and body shops: Any vehicle leaving with a repaired bumper, replaced windshield, or realigned front end almost certainly requires ADAS recalibration. This kit eliminates those sublet fees.
- General repair shops servicing modern vehicles: If your car count regularly includes 2018-and-newer vehicles from mainstream brands, ADAS recalibration is an increasingly mandatory step following alignment, suspension, and glass work.
- Mobile calibration operators: The portable, collapsible frame and included target set make this setup well-suited for running a mobile ADAS service business that covers dealerships, fleets, or body shops without in-house calibration capability.
When to Step Up or Step Down
If your shop handles very high ADAS volume and requires OEM-level software depth for luxury or European makes alongside the calibration hardware, it may be worth evaluating a higher-tier tablet configuration ÔÇö reach out and we’ll walk through the full lineup with you. Shops that only occasionally need ADAS work and already have a capable scan tool in service should consider frame-only configurations. For operations starting from zero on both diagnostics and calibration hardware, this complete kit is the most efficient entry point.
Why Buy From ADAS Calibration Tools?
- Specialist in professional diagnostic equipment
- Free shipping on this order
- Free technical support at 800-123-4567 ÔÇö speak directly with someone who knows the equipment
- Full manufacturer warranty honored
- Straightforward guidance on which configuration fits your shop ÔÇö we’ll tell you if a different option is the better match
