Autel MA600 Mobile Frame ADAS LDW w/ MS909 Tablet

Description

Autel MA600 Mobile ADAS Calibration System with MS909 Tablet ÔÇö LDW Coverage for 11 Brands

Designed for shops that demand portability without sacrificing capability, the MA600 Mobile Frame ADAS LDW package delivers a complete Lane Departure Warning calibration solution across a wide range of Asian and European vehicle platforms. The system combines the Autel MaxiSYS MS909 diagnostic tablet, the MA600 foldable calibration frame, a comprehensive set of LDW target panels, and the ADAS software upgrade ÔÇö providing everything a technician needs to perform static LDW calibrations on Alfa Romeo, Honda/Acura, Hyundai/Kia, Mazda, Mercedes-Benz, Mitsubishi, Nissan/Infiniti, Subaru, Toyota/Lexus, and Volkswagen/Audi/Porsche vehicles.

For shops handling high volumes of windshield replacements, front-end repairs, or suspension work on these makes, this system eliminates the need to send LDW jobs to a dealer or specialty ADAS shop. The MA600 frame folds flat for convenient storage and transport, making it a practical choice even where dedicated alignment bays are not available.

What This System Does

Any time a forward-facing camera is disturbed ÔÇö whether from a windshield swap, camera replacement, bracket adjustment, or front-end collision repair ÔÇö Lane Departure Warning calibration is required. Without a proper static calibration using the correct target pattern, the LDW system cannot function accurately, and the vehicle will not pass post-repair verification. This system supports that complete calibration workflow across all included makes and generations.

Included Targets and Part Numbers

Each target in the kit corresponds to a specific make, model generation, and camera type. The complete set included:

• Alfa Romeo LDW I ÔÇö CSC0601/10
• Honda / Acura LDW I ÔÇö CSC0601/05
• Honda / Acura LDW II (Left) ÔÇö CSC0601/08-L
• Honda / Acura LDW II (Right) ÔÇö CSC0601/08-R
• Honda / Acura LDW II ÔÇö CSC0601/24-01
• Hyundai / Kia LDW ÔÇö CSC0601/09
• Hyundai / Kia LDW II ÔÇö CSC0601/07
• Hyundai / Kia LDW III ÔÇö CSC701/23
• Mazda LDW I ÔÇö CSC0601/12
• Mazda LDW II (Left) ÔÇö CSC0601/13-L
• Mazda LDW II (Right) ÔÇö CSC0601/13-R
• Mercedes LDW I ÔÇö CSC0601/02
• Mercedes LDW II ÔÇö CSC0601/19
• Mitsubishi LDW I (Left) ÔÇö CSC0601/22-L
• Mitsubishi LDW I (Right) ÔÇö CSC0601/22-R
• Nissan LDW II (Left) ÔÇö CSC0601/03-L
• Nissan LDW II (Right) ÔÇö CSC0601/03-R
• Nissan LDW III (Left) ÔÇö CSC0601/04-L
• Nissan LDW III (Right) ÔÇö CSC0601/04-R
• Nissan / Infiniti LDW I (Left) ÔÇö CSC0601/06-L
• Nissan / Infiniti LDW I (Right) ÔÇö CSC0601/06-R
• Subaru LDW I ÔÇö CSC0601/14
• Subaru LDW II ÔÇö CSC601/17
• Toyota LDW II ÔÇö CSC0601/15
• Toyota / Lexus LDW I ÔÇö CSC0601/11
• Toyota / Lexus LDW III ÔÇö CSC601/25
• Toyota LDW IV ÔÇö CSC0601/11-01
• VW / Audi / Porsche LDW I ÔÇö CSC0601/01

Alignment and Positioning Tools Included

Precise target placement is the difference between a calibration that passes and one that fails. The MA600 package comes with the complete suite of positioning aids needed to set up every procedure correctly:

• Two-Line Laser (CSC1500/03) ÔÇö Aligns the calibration frame to the vehicle centerline
• Five-Line Laser (CSC1500/05) ÔÇö Finds perpendicular axis from any reference point
• L-Shaped Bracket (CSC1500/04) ÔÇö Measures distance from front wheel for precise frame placement
• Laser Assist Mirror (CSC1500/06) ÔÇö Simplifies viewing under the vehicle to set centerline
• Plumb Line (CSC1500/07) ÔÇö Transfers vehicle centerline to a ground reference point
• Laser Assisted Board (CSC1500/08) ÔÇö Used with either laser to locate vehicle centerline

The MS909 Tablet

Included in this package is the Autel MaxiSYS MS909 diagnostic tablet ÔÇö a full-featured scan tool that goes well beyond ADAS calibration. The MS909 delivers comprehensive diagnostics across all OBD-II vehicles, with support for advanced functions such as ECU coding, active tests, and bi-directional controls across every system. The ADAS software upgrade activates directly on this tablet, walking the technician step-by-step through each calibration procedure ÔÇö specifying the correct target, placement distance, and verification routine for the exact vehicle being serviced.

Expandable Beyond LDW

Out of the box, this bundle addresses LDW calibration across the listed makes. When your shop is ready to take on blind-spot monitoring (BSM), adaptive cruise control radar (ACC), surround-view camera (AVM), or night vision (NV) calibrations, optional expansion packs are available to add those capabilities to the same frame and tablet. This is not a closed platform ÔÇö the MA600 system scales alongside your shop’s growing ADAS workload.

Who This System Is For

• Independent shops with windshield replacement volume on Japanese and German makes ÔÇö stopping LDW referrals quickly generates a return on this investment
• Body shops performing front-end and glass work on Honda, Toyota, Nissan, Hyundai, and VW platforms
• Multi-bay shops that require portability ÔÇö the MA600 frame folds flat and stores without occupying a dedicated bay
• Shops building an ADAS revenue line who want to start with LDW calibration and expand into BSM, ACC, and AVM as volume increases

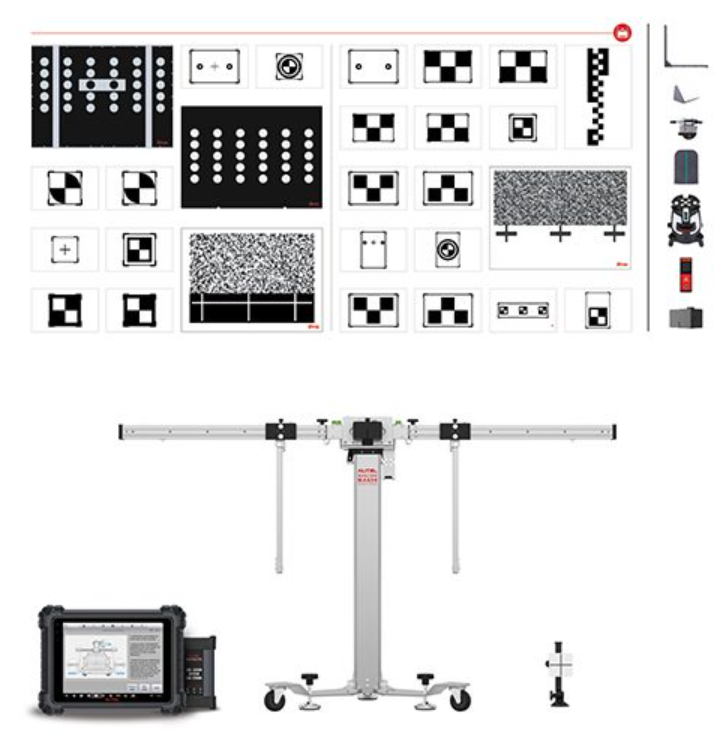

What Is in the Box

• Autel MaxiSYS MS909 tablet with ADAS software upgrade
• MA600 foldable calibration frame
• 28 LDW target panels (full set listed above)
• Patterns case for target storage and transport
• Two-line laser, five-line laser, L-shaped bracket, laser assist mirror, plumb line, laser assisted board
• One-year limited warranty
