Lane Departure Warning Package 2 include ADASFRAME SP

Description

Lane Departure Warning Package 2 with ADAS Frame SP ÔÇö Complete Static Calibration Kit for LDW and Forward Camera Systems

Any shop performing windshield replacements, front-end repairs, or ADAS component R&R knows exactly what follows: the instant that windshield is removed or a camera bracket is disturbed, the lane departure warning system must be recalibrated before that vehicle is returned to its owner. The Lane Departure Warning Package 2 with ADAS Frame SP (SKU: LDWPACKAGE) is Autel’s purpose-built solution for shops that require a complete, ready-to-deploy static calibration setup without sourcing individual components from multiple places.

This package combines the Autel ADAS Frame SP (the Calibration Standard Components frame) with the lane departure warning target and all necessary supporting hardware into one matched purchase at $7,402.50. You aren’t buying a frame and then tracking down the correct target afterward ÔÇö the entire system arrives pre-matched and engineered to operate together from the moment it’s unboxed.

What This Package Is Built For

• Lane Departure Warning (LDW) Calibration: Addresses the forward-facing camera systems responsible for lane-keeping assist and departure warning alerts. Following any windshield replacement or camera bracket repair, static target-based recalibration is required to restore correct lane detection angles and sensitivity thresholds.
• Windshield Replacement Shops: Auto glass operations that routinely trigger ADAS recalibration requirements will rely on this kit daily. Every current-generation vehicle equipped with LDW requires post-glass calibration ÔÇö this package allows that work to be completed in-house rather than outsourced to another facility.
• Collision Repair Centers: Front-end collision damage regularly displaces camera mounts, brackets, and sensor alignment. This package addresses the static recalibration phase once structural repairs have been completed.
• Dealership Service Departments: For service departments managing a mixed-brand vehicle portfolio, the Autel ADAS platform spans a broad range of makes and models. Exact vehicle coverage is verified through the Autel ADAS software ÔÇö contact us for the most current compatibility information tailored to your specific vehicle mix.

What’s Included

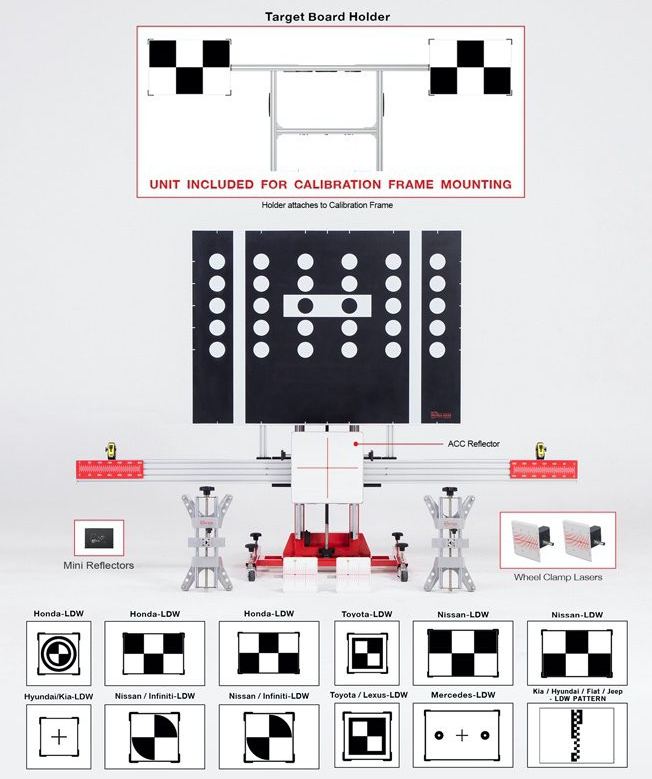

• Autel ADAS Frame SP: The Calibration Standard Components frame ÔÇö a precision-engineered rolling stand that positions calibration targets at manufacturer-specified heights and distances. Adjustable and stable on flat shop surfaces.
• LDW Calibration Target(s): Vehicle-specific target panels dimensioned and angled to meet the requirements of forward camera calibration. The software guides technicians through accurate positioning for each vehicle application.
• Supporting Hardware: Mounting hardware, leveling components, and connection accessories needed for proper frame assembly and target attachment.

Note: A compatible MaxiSYS diagnostic tablet (MS909, MS919, Ultra, or Elite II) running Autel ADAS software is required to operate this system and is not included in this package. If you need a complete tablet and ADAS bundle, contact us ÔÇö we can put together the right configuration for your shop.

How the Calibration Workflow Works

Static ADAS calibration with this system follows a structured sequence: the vehicle is staged on a flat, level surface; the ADAS Frame SP is positioned in front of the vehicle according to the software’s vehicle-specific setup guidance; the LDW target is mounted at the height and distance specified by the Autel software for that exact make, model, and year; and the diagnostic tablet runs the calibration routine, bringing camera parameters into alignment with the target reference. The software walks the technician through every step ÔÇö when the system is properly configured, there is no guesswork in this procedure.

Who Needs Package 2 vs. a Different Configuration

Package 2 serves as the LDW-focused entry point into Autel’s static calibration ecosystem. Shops that predominantly handle windshield work and forward-camera recalibration will find this package covers that workflow effectively. If your operation also deals with ACC radar calibration, surround-view (AVM) systems, or blind-spot radar, broader ADAS packages that include additional targets will be a better fit. For shops where wheel alignment integration is a priority, the Autel IA900WA combines alignment and ADAS functionality on a single platform. Reach out and describe your vehicle mix ÔÇö we’ll give you a straightforward answer on whether this package is the right match or whether another configuration better suits your volume and vehicle types.
