Autel Standard Frame CV ADAS All Systems w/ MS909CV Tablet

Description

Autel Standard Frame CV ADAS All Systems with MS909CV Tablet (MS909CV-1)

Built around the Standard Calibration Frame, IA800 Camera Positioning System, and MS909CV diagnostic tablet, this is Autel’s dedicated ADAS calibration solution for commercial vehicle environments. Shops handling heavy-duty trucks, mixed fleet operations, windshield replacements, front-end repairs, or suspension work that triggers ADAS recalibration requirements will find this package engineered precisely for that scope of work.

Priced at $22,215, this is a serious professional investment. The system delivers static calibration for lane departure warning (LDW) cameras and forward-facing systems across a wide range of makes. The CV designation reflects the MS909CV tablet’s configuration for commercial vehicle protocols in addition to full passenger car coverage.

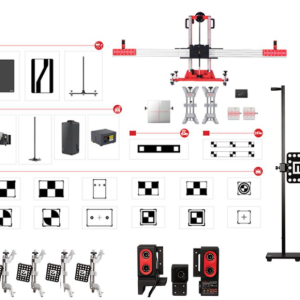

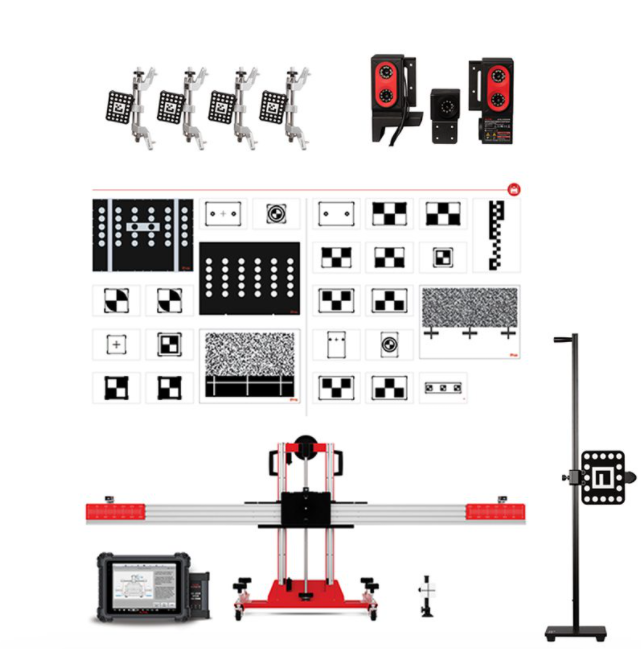

What’s Included

• Standard Calibration Frame: The CSC (Calibration Standard Components) upright frame that positions targets at the precise heights and distances specified by OEM calibration procedures
• IA800 Intelligent Camera Positioning System: Camera-based wheel target positioning that directs you to the exact frame placement without manual measuring ÔÇö minimizes setup error and accelerates the workflow
• MS909CV Tablet: MaxiSYS 909 in commercial-vehicle configuration; runs ADAS calibration software along with complete diagnostic functions across both passenger and commercial platforms
• ADAS Software Upgrade: Activates the full ADAS calibration module on the MS909CV
• LDW Calibration Targets and Pattern Boards: Vehicle-specific targets for Lane Departure Warning systems on Alfa Romeo, Honda, Genesis, Volkswagen, Mercedes-Benz, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, and Toyota/Lexus
• Wheel Clamps: Attach to wheels to serve as IA800 positioning reference points
• Laser Crossbar: Establishes vehicle centerline alignment throughout the target setup process
• LDW Target Case: Protective carrying case for calibration target boards
• Target Board Holder: Secures targets to the frame at the required height and position
• Digital ADAS Package: Software licenses and digital documentation for all covered calibration procedures
• One-Year Limited Warranty

What This System Calibrates

The core focus of this package is static LDW (Lane Departure Warning) camera calibration. Target coverage spans forward-facing camera systems on all makes listed above. For shops that also require radar (ACC), night vision, blind-spot, or AVM calibration beyond the included target set, contact ADAS Calibration Tools ÔÇö Autel’s modular target architecture supports expansion into those additional systems.

The CV tablet brings commercial vehicle protocol support ÔÇö J1939, J1708, and OBD-HD coverage ÔÇö so mixed-fleet operations don’t need separate tools running side by side for passenger and commercial vehicles.

Who Needs This Configuration

• Fleet and commercial shops performing windshield R&R or front-end repairs on LDW-equipped vehicles
• Multi-line independent shops servicing both passenger cars and light commercial vehicles with a single unified tool
• Body shops that have built ADAS recalibration into their service offerings
• Dealerships operating commercial vehicle franchises alongside passenger car lines

If your volume is exclusively passenger vehicles with no commercial work, the standard MS909 package (non-CV) provides the same ADAS target coverage at a lower price point. For shops that need broader capability beyond LDW ÔÇö including radar, 360-degree AVM, or night vision systems ÔÇö the MA600 or IA900WA-based packages are the appropriate next step. Reach out to ADAS Calibration Tools and we’ll match the right configuration to your actual vehicle mix.

Technical Notes

• Calibration type: Static (in-bay). Dynamic calibration requires a road drive with supported vehicles and is executed through the tablet software.
• Frame type: Standard CSC frame ÔÇö fixed upright design. This is not the mobile MA600 frame.
• Positioning system: IA800 (camera-based) rather than IA900WA (wheel-alignment-integrated). The IA800 is the appropriate match for this frame configuration.
• Exact target dimensions, OEM-required distances, and model-year coverage details: Available on request or through the Autel ADAS target compatibility guide.
