Autel LDW Calibration Package – LDWPACKAGE

Description

Autel LDW Calibration Package (LDWPACKAGE-01)

Built around Autel’s electrically powered adjustable CSC frame, the Autel LDW Calibration Package is a fully self-contained static ADAS calibration solution. Beyond what a standard frame kit provides, this package extends your capability to include Lane Departure Warning (LDW) calibration ÔÇö combining forward camera calibration, ACC radar support, and LDW targets for a broad range of Asian and European platforms in a single purchase.

Windshield replacements, front-end collision repairs, and suspension work on LDW-equipped vehicles all trigger a mandatory recalibration requirement under OEM specification and, in many jurisdictions, by law. Rather than subcontracting that work out and losing margin, this package gives your shop everything needed to complete calibration in-house.

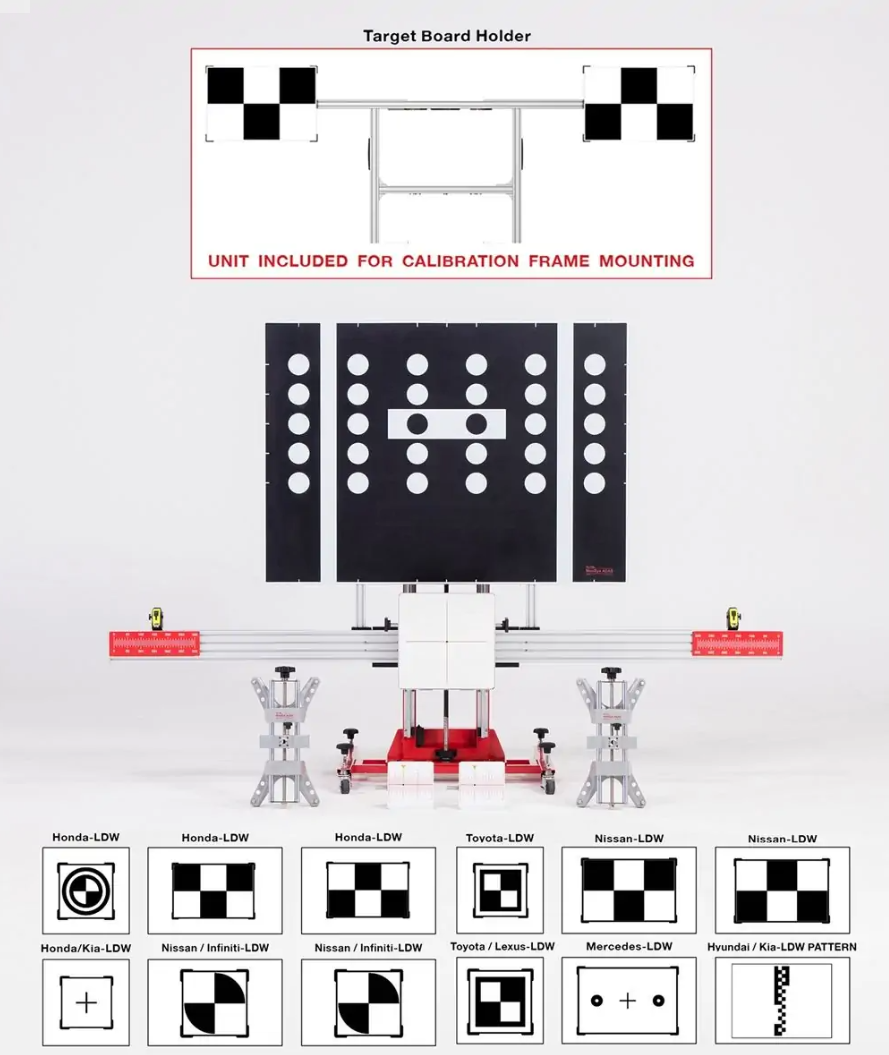

What’s in the Box

• Adjustable ADAS Calibration Frame: Electrically powered height lifter for precise vertical positioning without manual guesswork
• LDW Pattern Board for VW and Mercedes: Vehicle-specific patterns required for forward camera calibration on Volkswagen and Mercedes-Benz platforms
• LDW Target ÔÇö Honda, KIA, Nissan, Infiniti, Toyota, Lexus, Hyundai: Covers the major Asian makes that require LDW static targets for forward-facing camera recalibration
• Target Board Holder: Positions and stabilizes the target board at the correct height and distance for calibration procedures
• Two Wheel Clamps with Lasers: Used to establish vehicle centerline and set target placement distance accurately
• Adaptive Cruise Control (ACC) Reflector: Required for radar/ACC sensor calibration on supported vehicles

Vehicle Coverage

The LDW targets and pattern boards included in this package support static LDW calibration across the following platforms:

• Asian Platforms: Honda, KIA, Nissan, Infiniti, Toyota, Lexus, Hyundai
• European Platforms: Volkswagen, Mercedes-Benz (via the included pattern board)

Coverage for makes outside this list is determined by the MaxiSYS ADAS tablet software. If you need to confirm exact model-year coverage for a specific vehicle before purchasing, contact us and we’ll verify it for you.

Compatible Tablets

A tablet is not included with this frame package. The LDWPACKAGE-01 is designed for use with:

• Autel MaxiSYS ADAS tablet (the dedicated ADAS unit)
• MaxiSYS MS908 or Elite tablets with the ADAS Calibration Application purchased and installed separately

Shops that already own a compatible MaxiSYS tablet can add this package without additional software expense beyond what the tablet already supports. If you’re building out a new setup from the ground up, pairing this frame with a MaxiSYS MS909, MS919, or Ultra gives you the most complete combined diagnostic and calibration workflow available.

Who Needs This Package

• Independent shops doing windshield R&R: LDW cameras mount to or near the windshield on most modern vehicles. Every glass pull on a LDW-equipped car triggers a required recalibration.
• Collision and alignment shops: Front-end repairs and suspension alignment changes can knock forward-facing sensors out of spec. Sending the car out for calibration kills your efficiency and your margin.
• Multi-make general repair shops: The target set covers Honda, KIA, Nissan, Infiniti, Toyota, Lexus, Hyundai, VW, and Mercedes ÔÇö enough coverage to handle the majority of daily ticket volume at a typical independent shop.

What This Package Does Not Cover

The LDWPACKAGE-01 does not include targets for every make and model currently on the road. If your shop runs a heavy volume of European luxury or domestic advanced-driver-assistance vehicles ÔÇö BMW, Audi, GM SuperCruise, Ford Co-Pilot ÔÇö review the full Autel target library to confirm coverage before committing to this package. Additional targets for those platforms are available and sold separately.

Technical Specifications

• Frame Type: Adjustable ADAS Calibration Frame with electric lifter
• Calibration Types Supported: Static (forward camera, LDW, ACC radar)
• Weight: 514 lbs (shipping weight)
• Warranty: 1 year on materials and workmanship
• Tablet Required: Sold separately (MaxiSYS ADAS, MS908, or Elite with ADAS app)
