Autel Standard Frame ADAS All Systems + IA800

Description

Autel Standard Frame ADAS All Systems + IA800 Package (IA800NO)

For any shop performing windshield replacements, suspension work, or front-end alignments on late-model passenger vehicles, ADAS recalibration has become a mandatory part of the job ÔÇö not an optional add-on. The Autel IA800NO is a comprehensive static ADAS calibration package engineered to cover Lane Departure Warning (LDW), Blind Spot Detection (BSD), Rear Cross Traffic Warning (RCW), Around View Monitor (AVM), Night Vision (NV), and Adaptive Cruise Control (ACC) systems across a broad spectrum of domestic, Asian, and European vehicle makes.

Combining Autel’s Standard Calibration Frame with the IA800 intelligent frame positioning system, this package trades manual tape measure setup for digital tape measures and laser-guided positioning ÔÇö delivering faster deployment and fewer placement errors on every job. Note that the MaxiSYS MS909 diagnostic tablet is required to execute calibrations and is sold separately.

ADAS Systems Covered

• LDW (Lane Departure Warning): Forward-facing camera calibration for lane-keep assist systems
• BSD (Blind Spot Detection): Rear-quarter radar/sensor calibration for blind-spot monitoring
• RCW (Rear Cross Traffic Warning): Rear sensor calibration for cross-traffic alert systems
• AVM (Around View Monitor): 360-degree surround camera system calibration
• NV (Night Vision): Infrared/thermal camera calibration for night vision assist
• ACC (Adaptive Cruise Control): Forward radar calibration for adaptive cruise and automatic emergency braking

Vehicle Coverage ÔÇö Makes and Target Boards Included

A complete set of OEM-matched target boards and calibration components for the makes listed below ships with this package:

• Honda / Acura: LDW targets CSC0601/05, CSC0601/08-L, CSC0601/08-R, CSC0601/09; AVM targets CSC1004/02, CSC1004/03; LaneWatch CSC0805-02
• Toyota / Lexus: LDW CSC0601/15, CSC0601/11; AVM CSC1004-10; Night Vision CSC603/03; LIDAR Reflector CSC802/04; One-Time Recognition LDW CSC0601-25
• Nissan / Infiniti: LDW CSC0601/06-L, CSC0601/06-R, CSC0601/03-L, CSC0601/03-R; RCW CSC1006/03, CSC1006-05; AVM CSC1004/11; Lane Keep boards CSC601/03-L, CSC601/03-R
• Volkswagen / Audi / Porsche: LDW CSC0601/01; RCW CSC0806/01; AVM CSC0804/01; ADR Calibration Plate CSC0602/08; LIDAR Board CSC602/04
• Mercedes-Benz: LDW CSC0601/02, CSC601/19; RCW CSC1006/01, CSC1006/02
• Subaru: Lane Keep CSC601/17; LDW CSC0601-17
• Mazda: Lane Keep CSC601/13-L, CSC601/13-R
• Mitsubishi: Lane Keep CSC601/22-L, CSC601/22-R; AVM CSC1004-09
• Cadillac: AVM CSC1004/06
• Hyundai / Kia / Genesis: AVM CSC1004/04; Genesis LDW CSC0701-23
• Alfa Romeo: LDW CSC0601-10
• Hitachi Radar: Plate CSC0802-03

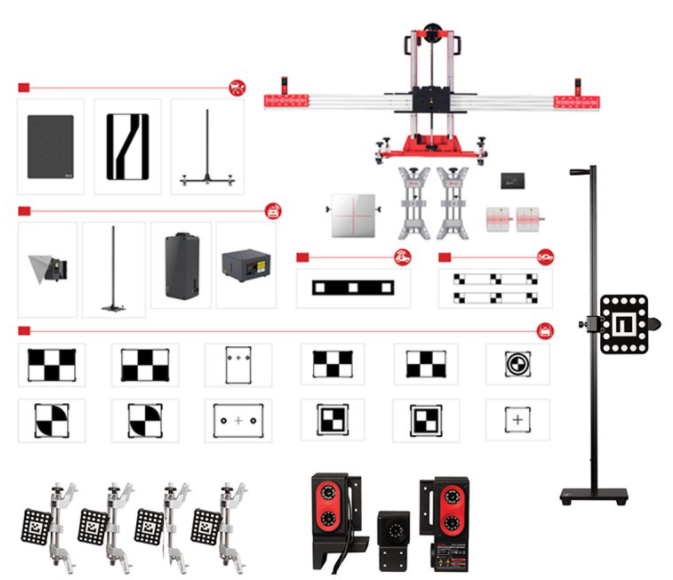

What’s in the Box ÔÇö Complete Components List

• ADAS Standard Calibration Frame with push-button power lifter and adjustable base
• Wheel Clamps (CSC0500/01) with integrated positioning lasers (CSC0500/02)
• Pattern Board 0600/06 with crossbar 0600/05
• Base Crossbar 0600/02 and Base Holder 0600/01
• Sliding Laser Plate and Flip-Up Reflector with Laser Position Ruler
• Mounted Tape Measure and Center Axis Laser 0500/04
• ACC Reflector 0602/01 and Radar Calibration Plate 0602/02
• Radar Calibration Box 0605/01
• Corner Reflector 0802/01 and Target Stand CSC0802
• Night Vision Calibration Box 0603/01 and Night Vision Calibration target 0803/01
• IA800 Digital Tape Measures (3x) ÔÇö replaces manual tape for faster, more accurate frame placement
• Digital Tape Measure Crossbar Brackets ÔÇö holds digital tape measures during frame positioning
• Front Wheel Targets ÔÇö used with digital tape measures to locate accurate distance from front axle
• Center Digital Tape Measure Bracket ÔÇö finds distance from front of car measuring from emblem or bumper
• Placement Boards ÔÇö designed for use on an alignment lift
• Two-Wheel Dials for vehicle centering
• All make-specific LDW, AVM, RCW, NV, ACC, LIDAR, and radar target boards listed above
• One-year limited warranty

IA800 ÔÇö Why It Matters for Setup Speed

The IA800 is Autel’s intelligent frame positioning module, and it fundamentally changes how setup works. Rather than relying on a manual tape measure and eyeballing precise placement, the IA800 deploys three digital tape measures paired with laser-guided wheel targets to calculate and verify frame position relative to the vehicle’s front axle. For any shop running multiple ADAS calibrations in a single day, that translates directly to reduced per-job setup time and fewer repeat calibrations triggered by positioning errors. A trained technician can execute setup in a fraction of the time that a manual process would require ÔÇö the kind of efficiency difference that compounds across a full day’s workload.

Who Needs This Package

This package is designed for shops that need a single, unified system capable of handling the full breadth of passenger vehicle ADAS calibration ÔÇö no need to source multiple separate kits for different makes. If your bay regularly sees a mixed flow of Honda, Toyota, Nissan, VW, Mercedes, Subaru, Hyundai, and domestic vehicles coming in for windshield replacements or ADAS-related repairs, this all-systems bundle covers every one of those in one purchase.

Shops that work almost exclusively on one brand, or a narrow range of makes, may find that a make-specific or reduced-target package is a better-value fit for their workflow. But if your vehicle mix is broad and you want to accept every ADAS calibration job that rolls through the door without turning work away, this is the configuration that makes that possible. Reach out to ADAS Calibration Tools and we can review your specific vehicle mix to confirm coverage before you commit.

What You Still Need

• MaxiSYS MS909 tablet (sold separately) ÔÇö required to run all calibrations. The MS909 delivers the guided calibration workflow, SAS reset capability, and live data verification that confirms a calibration has completed successfully. The IA800NO frame and targets cannot function without it.
• Flat, level floor space ÔÇö static calibrations depend on a level surface. An alignment lift is supported through the included placement boards.

Technical Specifications

• Calibration types: Static (all systems in this package); dynamic calibration requires road driving per OEM procedure after static setup
• Compatible tablet: Autel MaxiSYS MS909 (required, not included)
• Warranty: One year limited
• Frame type: Standard Calibration Frame (CSC platform)
• Positioning system: IA800 with three digital tape measures and laser wheel targets
• Systems covered: LDW, BSD, RCW, AVM, NV, ACC
• Vehicle type: Passenger vehicles (see make/target list above for specific coverage)
