Autel IA800 Intelligent ADAS Frame Package

Description

Autel IA800 Intelligent ADAS Frame Package

The IA800 Intelligent ADAS Frame Package is designed for shops that want to add a second ADAS calibration station without purchasing duplicate targets and accessories. Centered on the motorized, height-adjustable IA800 frame and activated by the included ADAS Upgrade Card, this configuration supports static lane departure warning calibration for Volkswagen and Mercedes-Benz vehicles, along with adaptive cruise control radar alignment ÔÇö all driven by a compatible tablet you provide separately (MS909 or higher required).

Whether you’re expanding an existing Autel ADAS setup to handle more bays simultaneously, or building out a dedicated ADAS station from the ground up while keeping target investment lean, this package is worth a close look.

What the IA800 Frame Does

At its core, the IA800 is a motorized calibration frame with an adjustable floor-level base. A push-button power lifter handles all crossbar height changes ÔÇö raising and lowering to whatever position each calibration procedure specifies with no manual cranking or estimation involved. For target positioning, the sliding laser plate moves laterally across the crossbar for precise horizontal adjustment, while the flip-up reflector paired with a laser position ruler lets you verify laser alignment before committing to the procedure. A tape measure is mounted directly to the frame, so you’re never scrambling for a separate measuring tool in the middle of a job.

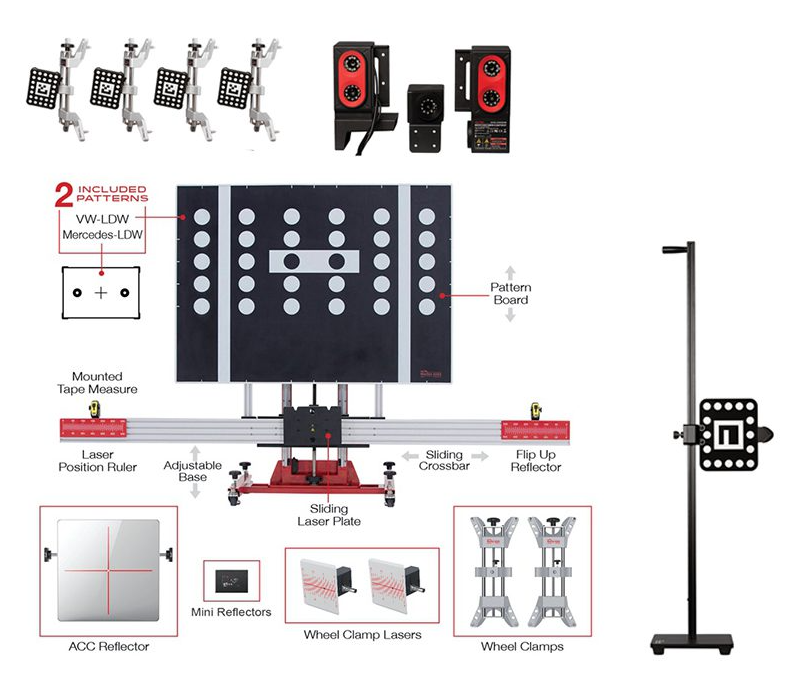

Included Targets and Hardware

• Pattern Board (CSC0600/06): The main board that holds the LDW pattern panels on the frame crossbar.
• VW LDW Pattern (CSC0601/01): Volkswagen-specific lane departure warning calibration target.
• Mercedes LDW Pattern (CSC0601/02): Mercedes-Benz-specific lane departure warning calibration target.
• ACC Reflector (0602/01): Adaptive cruise control radar reflector plate for front radar sensor alignment.
• Wheel Clamps with Lasers (0500/01 / 0500/02): Two wheel clamps with integrated laser units for vehicle centering and target positioning relative to the vehicle’s actual wheel centerline.
• Crossbar (0600/05): Attaches to the vertical column and carries the pattern board at the calibrated height.
• Base Crossbar (0600/02) and Base Holder (0600/01): Form the stable floor-level base of the frame.
• Sliding Laser Plate: Adjusts laterally on the crossbar for precise horizontal target positioning.
• Flip-Up Reflector and Laser Position Ruler: Quick-reference tool for confirming laser alignment during setup.
• Mounted Tape Measure: Integrated measuring tape for distance-to-vehicle setups.
• Push Button Power Lifter: Motorized height adjustment for the crossbar ÔÇö no manual effort required.
• Adjustable Base: Accommodates different floor conditions and vehicle approach angles.
• ADAS Upgrade Card: Activates ADAS calibration functionality on the connected MaxiSYS tablet.

What’s Not Included (and What You Need)

No tablet is included with this package. Running calibration procedures requires a MaxiSYS MS909 or above ÔÇö compatible models include the MS909EV, MS919, and MaxiSYS Ultra. If your shop already owns a qualifying Autel tablet from an existing setup, it will work with this frame once the ADAS Upgrade Card has been applied. Reach out to us before ordering if you want confirmation that your current tablet is compatible.

Vehicle-specific targets beyond the included VW and Mercedes-Benz LDW panels are not part of this package. Autel maintains an extensive target library covering additional makes and systems ÔÇö contact us to identify which targets match your actual vehicle mix so you’re not buying hardware you won’t use.

Which Shops This Package Fits

• Multi-bay ADAS shops: Already have a full Autel ADAS system in one bay and need a second frame to run concurrent jobs without buying duplicate targets.
• Import-focused shops: Heavy VW/Audi and Mercedes-Benz volume ÔÇö the two included LDW targets cover your most common static calibration calls.
• Collision centers adding ADAS: Windshield replacements and front-end repairs routinely require camera and radar recalibration. This frame handles both the forward camera (LDW) and ACC radar in one setup.
• Shops with an existing MS909 or Ultra tablet: If you already run Autel diagnostics at that level, adding this frame is a straightforward expansion ÔÇö no new tablet purchase required.

Calibrations Supported

• Lane departure warning (LDW) ÔÇö Volkswagen and Mercedes-Benz static targets included
• Adaptive cruise control (ACC) radar ÔÇö reflector plate included
• Additional calibration types (AVM, blind spot, night vision) depend on targets purchased separately and tablet software version
