Autel Alignment 14K Scissor Lift

Description

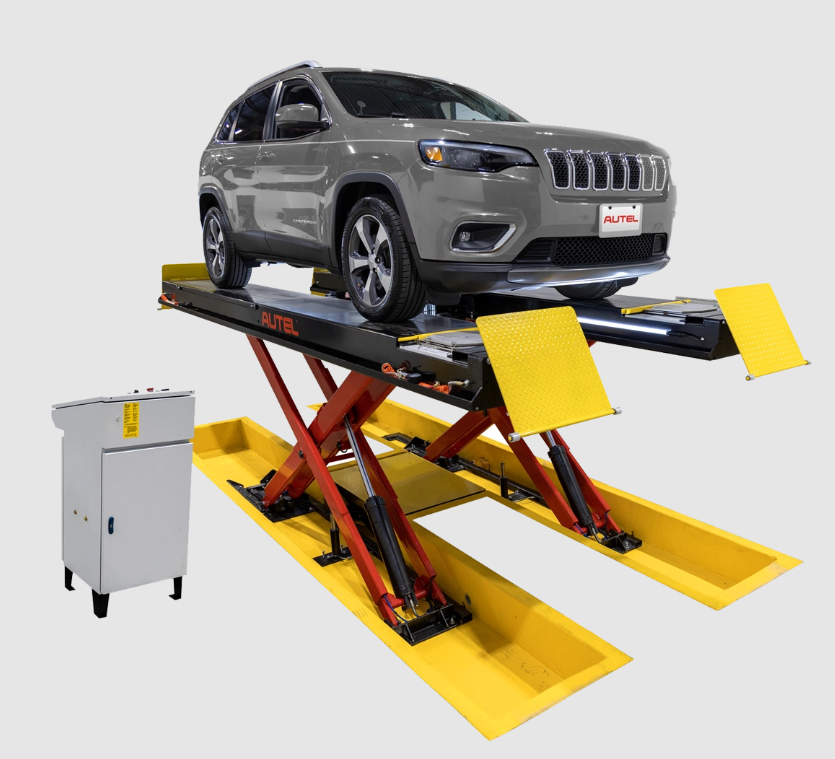

Autel Alignment 14K Scissor Lift (AULS14ALOR1)

Built for shops that run alignments every day, the Autel Alignment 14K Scissor Lift is a surface-mounted hydraulic scissor lift with a 14,000-pound total capacity engineered specifically for wheel alignment service on passenger vehicles and light trucks. This is not a general-purpose lift adapted for alignment work ÔÇö it is a dedicated alignment platform designed to stay rigid, resist flex, and hold up to years of daily production use without compromise.

Capacity and Structure

• Total Lift Capacity: 14,000 lbs (two 7,000-lb jacking beams)
• Runway Dimensions: 203 inches long, 26 inches wide ÔÇö double-wide for stability
• Built-in “Z” Rails: Structural reinforcement that eliminates runway sag and flex, which directly affects alignment accuracy
• Flush/Surface-Mounted Installation: Compatible with both in-ground and surface installations depending on your shop setup
• Low-Angle Approach Ramps: Easy vehicle drive-on, including low-clearance cars

Alignment-Specific Features

• Stainless Steel Front Radius Plates: Full-rotation turn plates for front wheel positioning during alignment
• Rear Slip Plates: Allow rear axle movement during alignment procedures
• Turn Plate Pocket Protectors: Protect paint and finish on the runway pockets
• Flip-Down Wheel Stops: Front and rear opening runways with wheel stops that fold away when not needed
• Stainless Steel Air Lock Release: Longer service life, lower maintenance than standard air lock systems

Built-In Utility

• Runway Air Tire Inflation Kit: Built-in inflation ports at each wheel position ÔÇö set tire pressure during the alignment without moving the vehicle
• 24-Inch LED Lighting Kit: Shatterproof lights illuminate the undercarriage work area; automatic shutoff included
• Enclosed Console Control Power Unit: Protected hydraulic controls, cleaner installation

Construction and Finish

• Made in North America and ALI (Automotive Lift Institute) Certified
• Krown Industrial-Grade Rust Proofing: Applied to structural components for long-term corrosion resistance in shop environments
• Premium Double-Baked Powder Coat Finish: Black finish on both the scissor lift body and base
• Autel-Branded: Matched to Autel’s alignment system ecosystem

Warranty Coverage

• Lift Parts: 1-year limited warranty
• Hydraulic Jack Parts: 5-year warranty
• Turn Plates, Slip Plates, Bearings, Air Kit, LED Lighting: 90-day warranty

The Right Lift for a Dedicated Alignment Bay

If your shop operates a dedicated alignment bay, this is the lift that bay calls for. The double-wide runways prevent instability, the integrated slip and turn plates eliminate the need for add-on accessories, the built-in tire inflation kit lets technicians set pressures at the wheel without repositioning the vehicle, and the under-lift LED lighting keeps the work area visible throughout the job. At 14,000 lbs of rated capacity, the AULS14ALOR1 accommodates the full range of passenger cars, crossovers, SUVs, and light trucks that make up most alignment shop volume. This is a purpose-built solution ÔÇö not a workaround.

If your operation involves heavier commercial vehicles or a drive-through bay configuration, reach out to us ÔÇö depending on your vehicle mix and bay dimensions, a different configuration may be the better match.
