Autel Alignment 12K Scissor Lift

Description

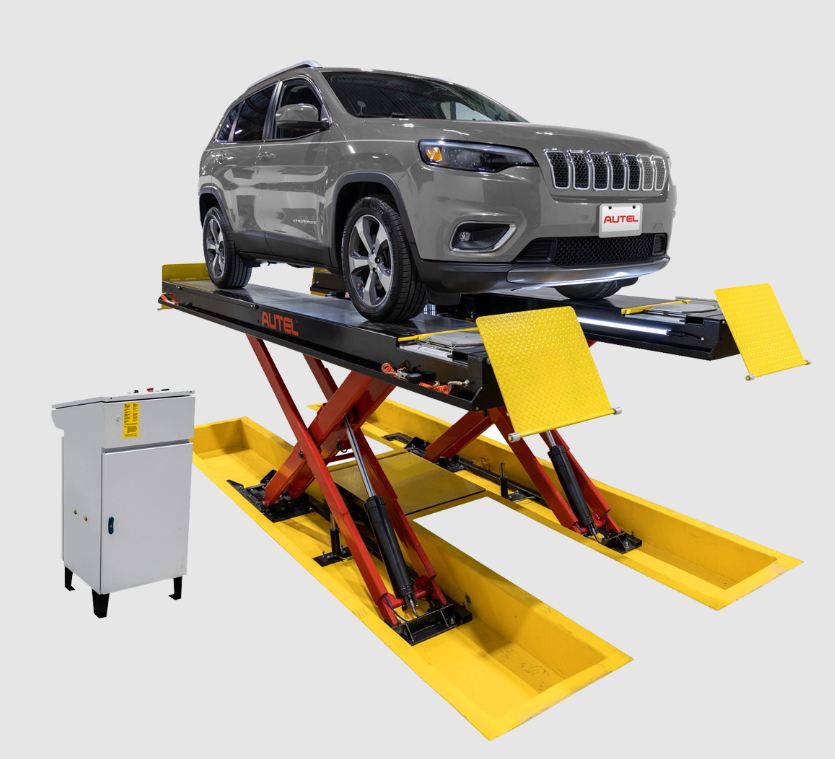

Autel Alignment 12K Scissor Lift (AULS12ALOR1)

Built for shops where wheel alignments are a daily operation, this 12,000-lb capacity hydraulic scissor lift delivers a surface-mount solution engineered to stay rigid, accurate, and out of your way. The flush-mount design sits level with the shop floor ÔÇö no raised platform to work around. ALI certified and manufactured in North America, the AULS12ALOR1 is priced at $37,000 for shops that refuse to cut corners on lift performance.

Is This Lift Right for Your Shop?

If your operation runs a wheel aligner and regularly services passenger vehicles and light trucks up to 12,000 lbs, this lift is engineered for exactly that workflow. It’s designed to work seamlessly alongside Autel’s alignment systems. The flush-mount scissor configuration keeps your floor level and your entry angles low ÔÇö a real advantage when customers arrive in lowered vehicles or anything with tight ground clearance.

Runway Structure and Load Specs

• Capacity: 12,000 lbs total, with two 7K capacity jacking beams included
• Runway dimensions: 185 inches long, 26 inches wide ÔÇö double-wide for stability
• Built-in Z-rails: Engineered into the runway structure to eliminate sagging and flexing during service; this directly affects alignment accuracy
• Low-angle approach ramps: Reduces hang-up risk for low-clearance vehicles
• Front and rear runway openings: Flip-down wheel stops included

Alignment-Specific Components

• Stainless steel front radius plates: Smooth, corrosion-resistant surface for accurate steering sweep measurements
• Rear slip plates: Allow rear axle movement during alignment without binding
• Turn plate pocket protectors: Protect the finish around plate pockets ÔÇö a detail that matters in a shop where tools get dropped

Hydraulic System and Controls

• Stainless steel air lock release: Longer service life compared to standard components; reduces maintenance cycles
• Enclosed console control power unit: Keeps hydraulic controls protected and centralized
• Built-in runway air tire inflation kit: Located at each wheel position ÔÇö inflate tires without moving the vehicle off the lift

Corrosion Protection and Finish

• Krown industrial-grade rust proofing: Applied before paint for long-term corrosion resistance in shop environments
• Premium double-baked powder coat finish: Black finish with Autel logo labeling

Integrated Lighting

• Shatterproof 24-inch LED lighting kit: Mounted on the lift, with automatic shutoff ÔÇö lights the undercarriage without a separate shop light

Certifications and Warranty Coverage

• ALI Certified: Meets Automotive Lift Institute standards ÔÇö required by many shop insurance policies and OSHA compliance programs
• Made in North America
• Lift parts warranty: 1 year limited
• Hydraulic jack parts warranty: 5 years
• Front turn plates, rear slip plates, bearings, air kit, LED light kits: 90 days

Package Contents

• 12K scissor lift assembly (surface/flush mount)
• Two 7K jacking beams
• Stainless steel front radius plates
• Rear slip plates with turn plate pocket protectors
• Built-in runway air tire inflation kit (at each wheel)
• Shatterproof 24-inch LED lighting kit with auto shutoff
• Enclosed console control power unit
• Low-angle approach ramps

Making the Purchase Decision

At $37,000, this lift represents a significant capital commitment. It’s the right call for shops running consistent alignment volume ÔÇö where alignments routinely follow tire installs, suspension repairs, or steering work. In that environment, the Z-rail runway construction and integrated jacking beams deliver measurable improvements in throughput and measurement accuracy. If your alignment work is sporadic and you’re evaluating basic two-post or four-post options, this configuration goes beyond what those use cases require. Reach out to discuss your service volume and whether this lift suits your bay dimensions and floor specification.
