Autel ADAS Standard Frame All Systems Package, ADAS Upgrade and MS909 Tablet – AS20T

Description

Autel ADAS Standard Frame All Systems Package with ADAS Upgrade and MS909 Tablet ÔÇö AS20T

The AS20T represents Autel’s most comprehensive static ADAS calibration solution: the CSC Standard Frame paired with the MaxiSYS MS909 diagnostic tablet, a complete ADAS software upgrade, and every target, pattern, and component required for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch, and AVM calibrations ÔÇö all in a single transaction. For shops performing post-windshield, post-front-end, or post-suspension repairs across a mixed domestic and import vehicle mix, this configuration delivers the broadest system coverage available without the need for piecemeal purchasing.

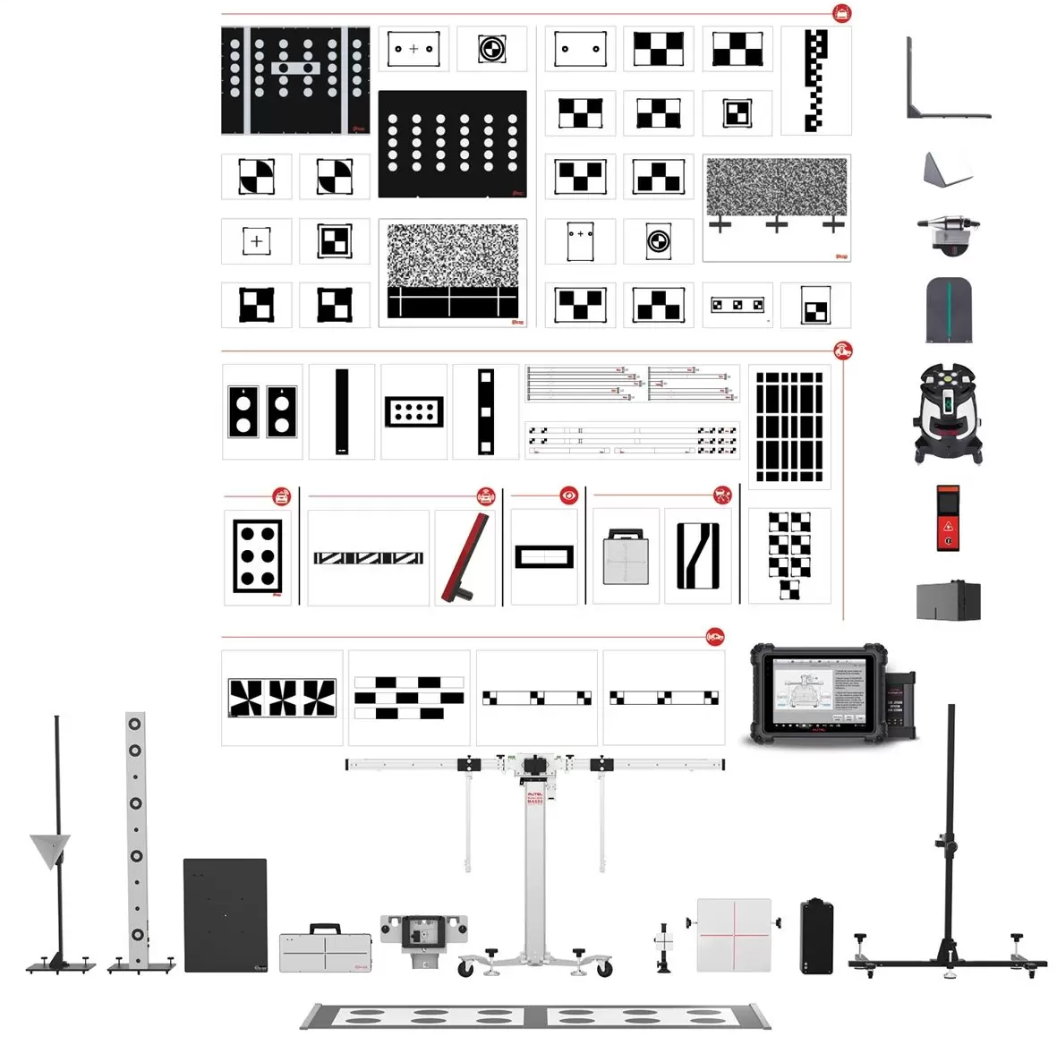

What’s in the Box

• Autel CSC Standard Frame ÔÇö the rigid, adjustable calibration frame engineered for static target placement across all supported ADAS systems
• MaxiSYS MS909 Tablet ÔÇö a full-featured diagnostic tablet with ADAS software pre-activated, guiding calibration procedures and communicating directly with vehicle modules
• ADAS Software Upgrade ÔÇö broadens calibration coverage and keeps the system aligned with new vehicle applications as they are released
• LDW Patterns and Targets for: Alfa Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus
• Lidar Calibration Targets for: VW/Audi, Lexus, Toyota
• RCW (Rear Cross-Traffic Warning) Patterns and Package for: VW, Nissan, Mercedes
• Honda LaneWatch Target
• Expansion Pack ÔÇö adds RCW, AVM (Around View Monitor), Lidar, and Night Vision calibration components
• DIGITALADAS Add-On ÔÇö enables single-technician frame placement; includes Target Stand
• One-Year Limited Warranty on all components

What This Package Calibrates

• LDW (Lane Departure Warning) ÔÇö forward-facing camera calibration following windshield R&R or camera repositioning
• ACC (Adaptive Cruise Control / Radar) ÔÇö front radar alignment after bumper, grille, or front-end repair
• Lidar ÔÇö laser-based distance sensor calibration covering VW/Audi, Toyota, and Lexus applications
• Night Vision ÔÇö infrared camera alignment for supported makes
• RCW (Rear Cross-Traffic Warning) ÔÇö rear radar calibration for VW, Nissan, and Mercedes vehicles
• AVM (Around View Monitor / 360┬░ Camera) ÔÇö multi-camera surround-view system calibration
• LaneWatch ÔÇö Honda’s dedicated side-view camera system, requiring its own specific target

Who Needs This Configuration

The AS20T is purpose-built for shops that want a single purchase to address the full range of Autel-supported ADAS calibrations. If your operation already handles windshield replacements, front-end alignments, or sensor replacements on modern imports and domestics, ADAS calibrations are a billable service you may currently be turning away or subcontracting elsewhere. This package eliminates that gap. Because the MS909 tablet is included, the AS20T functions as a completely self-contained system ÔÇö no existing Autel tablet required.

Shops focused primarily on one or two makes may find a more targeted configuration more cost-effective. But if your bays routinely see a broad mix ÔÇö Honda, Toyota, VW, Mercedes, Nissan, Subaru, Hyundai/Kia, and others ÔÇö and you want to bring static calibration fully in-house rather than relying on a mobile calibration service, this is the configuration that delivers. The DIGITALADAS add-on is especially valuable for leaner crews: it converts what would otherwise be a two-person frame setup into a one-technician operation.

Calibration Trigger Reference

• Windshield replacement on any vehicle with a forward-facing camera mounted to the glass
• Front bumper, grille, or radar cover R&R
• Front suspension or steering geometry work on ADAS-equipped vehicles
• Camera or sensor replacement
• Any repair that alters the physical relationship between a sensor and its calibrated reference point

Technical Notes

• Weight: 950 lbs (full package including frame and all components)
• Calibration type: Static (frame and target based); dynamic calibration requires a road drive procedure guided by the MS909 tablet
• Compatibility: Works with the MaxiSYS tablet lineup; MS909 is included in this bundle
• Exact frame dimensions and vehicle-specific setup requirements are documented in the Autel ADAS setup guides included with the system
