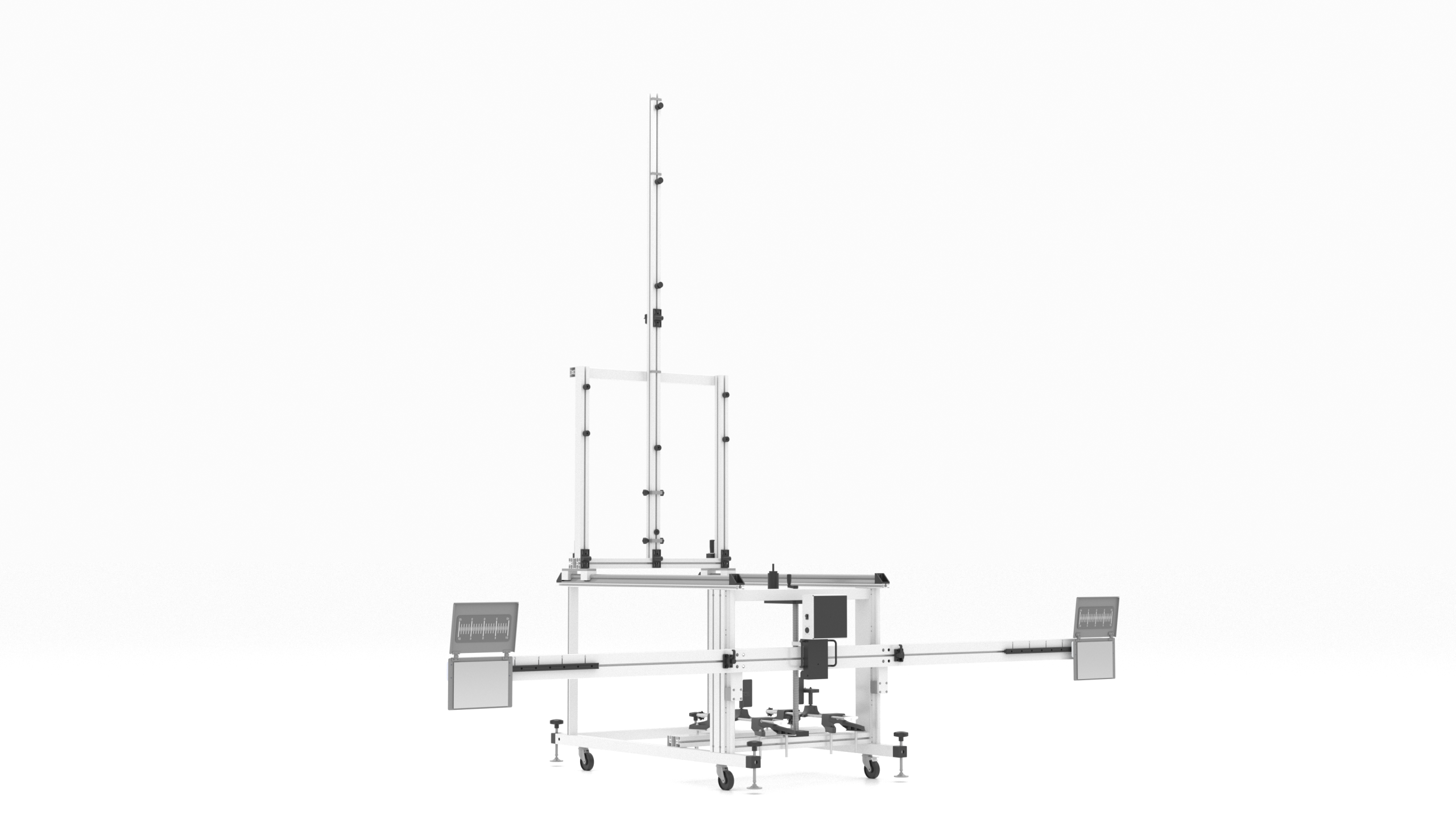

Jaltest ADAS Calibration Panel Support Structure ÔÇö COJ50001008
The Jaltest ADAS calibration panel support structure is the physical foundation every serious calibration setup depends on. Whether you’re calibrating cameras, radar units, or sensors on commercial trucks, buses, or light vehicles, the target panels used throughout the process must be held in precise position every single time. That is precisely what this structure delivers ÔÇö a stable, engineered platform that keeps calibration panels at the exact height, angle, and distance required for valid, repeatable results.
Priced at $7,404, this is purpose-built shop infrastructure for professional environments. Shops performing ADAS calibrations on a regular basis ÔÇö after windshield replacements, camera and radar component R&R, or front-end collision repairs ÔÇö need a dedicated frame they can count on. One that holds true job after job without requiring improvisation when the next commercial vehicle pulls into the bay.
Core Functions of This Support Structure
- Target panel mounting platform: Designed to hold Jaltest-compatible calibration targets, including the Bendix Wingman Fusion radar/camera panel and other OEM-specific targets required for commercial vehicle ADAS systems.
- Repeatable positional accuracy: The quality of any ADAS calibration is directly tied to target placement. This frame is engineered so panels are held in the correct position relative to the vehicle on every job, producing consistent and accurate calibration data.
- Height and angle adjustment capability: Built to accommodate the broad range of vehicle types covered by Jaltest’s commercial vehicle portfolio ÔÇö from Class 8 heavy-duty trucks and buses down to lighter commercial units. Exact adjustment specifications are available from Jaltest/Cojali USA upon request.
- Designed to work with the Jaltest ADAS Diagnostics Solution Kit: The guided calibration and diagnostic software within the Jaltest system walks technicians step by step through the procedure. This support structure ensures the physical target placement matches precisely what the software expects.
Who This Structure Is Built For
This is a tool for shops that have made ADAS calibration a defined part of their commercial vehicle service offering. Specifically:
- Heavy-duty truck and bus repair facilities performing camera and radar system removal and reinstallation ÔÇö systems like Mobileye and Bendix Wingman and other collision-mitigation technologies require post-repair calibration before the vehicle can return to road operation.
- Windshield and glass replacement shops servicing commercial fleets. Forward-facing cameras mounted behind the windshield require recalibration following any glass replacement work.
- Collision repair centers handling commercial vehicle damage. Structural front-end repairs that alter sensor mounting geometry require full recalibration before the vehicle is released back to service.
- Fleet maintenance operations managing in-house ADAS diagnostics and repair without outsourcing calibration work.
If your shop handles only occasional ADAS jobs, this level of investment may not be justified. But if commercial ADAS calibration is a consistent part of your workflow, a dedicated, repeatable setup saves measurable time on every single job and removes the risk of inaccurate calibrations caused by imprecise or inconsistent target positioning.
Where This Fits in the Jaltest ADAS Ecosystem
Cojali’s Jaltest ADAS product line is designed around a complete end-to-end calibration workflow. The diagnostic hardware and software manage the guided procedure and maintain communication with the vehicle. The calibration targets ÔÇö including manufacturer-specific panels such as the Bendix Wingman Fusion panel ÔÇö provide the visual or radar reference points that sensors require to calibrate against. This support structure connects those two elements: it is what physically holds the targets in the exact location the procedure demands.
If you already have Jaltest diagnostic hardware and software in place and are adding calibration panel capability, purchasing this structure separately is a logical next step. If you are building out an ADAS calibration service from the ground up, speak with ADAS Calibration Tools about the complete Jaltest ADAS Diagnostics Solution Kit, which covers the diagnostic side of the workflow as well. We can help you identify which configuration is the right fit for your vehicle coverage requirements and shop setup.
Technical Details
- SKU: COJ50001008
- Manufacturer: Cojali USA (Jaltest brand)
- Application: Commercial trucks, buses, and light vehicles within Jaltest ADAS coverage
- Compatible targets: Jaltest ADAS calibration panels including OEM-specific panels (Bendix Wingman Fusion and others)
- Full specifications and compatibility details: Available on request from ADAS Calibration Tools ÔÇö call 800-123-4567
Why Buy From ADAS Calibration Tools?
- Specialist in professional diagnostic and calibration equipment for commercial and light vehicle applications.
- Free shipping on this order.
- Free technical support at 800-123-4567 ÔÇö our team understands Jaltest ADAS workflows and can help you build the right configuration for your specific shop and vehicle mix.
- Full manufacturer warranty honored on all Cojali/Jaltest equipment we sell.
- Straightforward upgrade guidance ÔÇö if the complete ADAS kit or additional target panels are what your operation actually needs, we will tell you upfront before the order is placed, not after.
Call 800-123-4567 for quick answers and ordering assistance!
