Autel Tesla Target CSC0611-07

Description

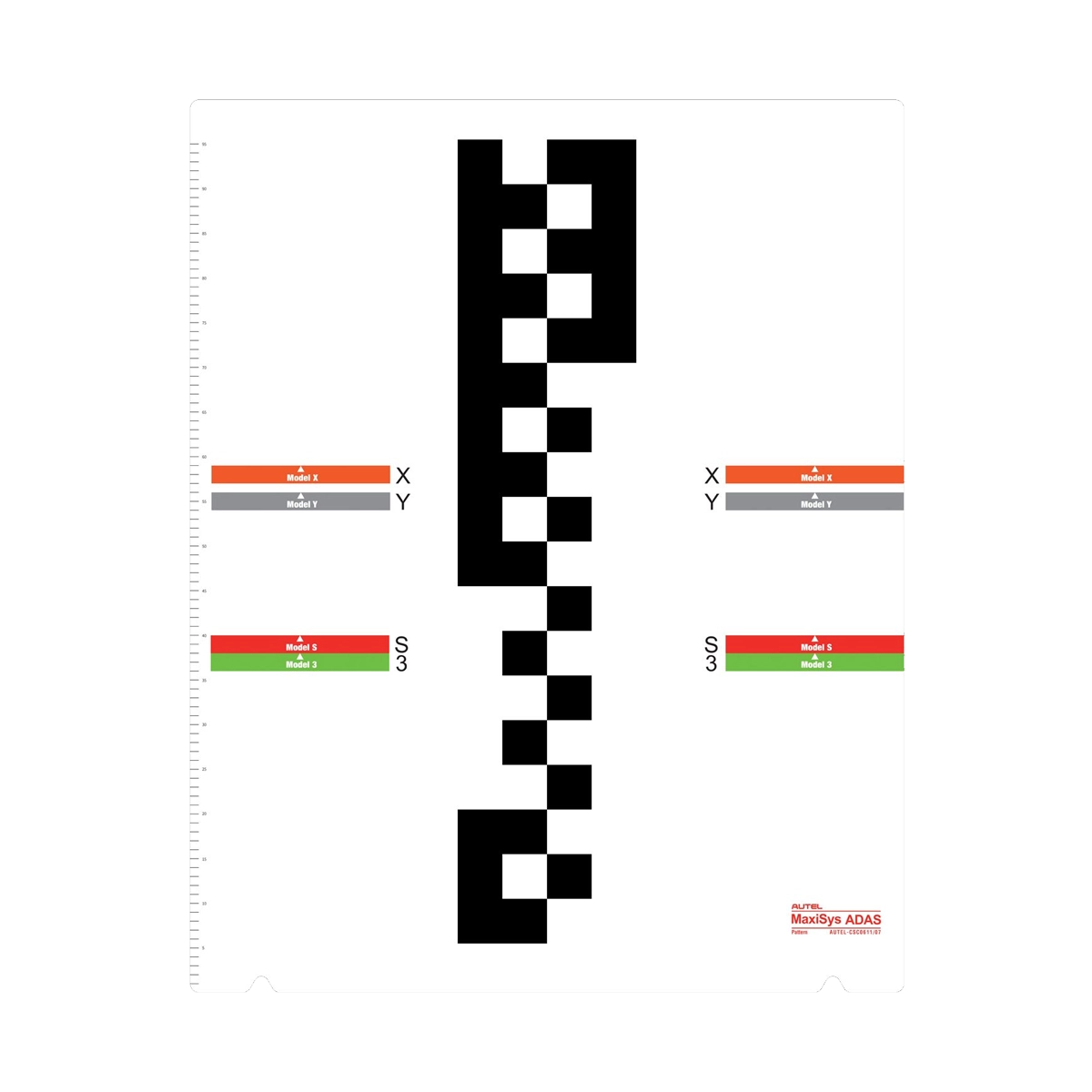

Autel Tesla Camera Calibration Pattern (CSC0611-07)

Designed specifically for Tesla Model S, X, 3, and Y vehicles built from April 2019 onward, the CSC0611-07 is Autel’s dedicated camera calibration pattern for these popular electric vehicles. Tesla’s camera-driven driver assistance architecture demands static calibration any time the cameras are disturbed during service. This pattern is compatible with both the Autel IA900WA and MA600 frame systems, and the appropriate Tesla Testkit cable is required to establish the VCI connection between the vehicle and the tablet.

Tesla Models Covered

• Tesla Model S ÔÇö April 2019 and newer
• Tesla Model X ÔÇö April 2019 and newer
• Tesla Model 3 ÔÇö April 2019 and newer
• Tesla Model Y ÔÇö April 2019 and newer

Important: Coverage is limited to April 2019 and newer production vehicles. Earlier Tesla models rely on different hardware configurations and are not supported by this pattern. Always confirm the vehicle’s production date before placing your order.

What This Pattern Does

Depending on trim level, Tesla vehicles deploy a forward-facing camera along with additional cameras to power Autopilot, lane keeping assist, collision avoidance, and related driver assistance functions. Any service event that disturbs these cameras ÔÇö windshield replacement, camera remounting, or collision repair ÔÇö triggers a requirement for static recalibration. The CSC0611-07 supplies the reference target that the Autel system uses to execute and verify that calibration procedure correctly.

Required Equipment and Connectivity

Rather than a standard OBD-II port, Tesla vehicles use a proprietary diagnostic interface. The following equipment is needed to complete a calibration using this pattern:

• Autel IA900WA frame or MA600 Mobile Frame ÔÇö this pattern works with both
• Compatible Autel MaxiSYS tablet loaded with ADAS software
• Autel Testkit cable for Tesla (sold separately) ÔÇö necessary to connect the vehicle to the tablet’s VCI. Standard OBD-II cables are not compatible with Tesla vehicles and will not work.

If the Tesla Testkit cable is not already part of your equipment, include it with your order. The OBD/VCI connection required to run the calibration procedure cannot be completed without it.

Frame Compatibility

• Autel IA900WA Frame: Compatible directly
• Autel MA600 Mobile Frame: Compatible directly

What Is Included

• Tesla camera calibration pattern board (CSC0611-07)
• 1-year limited warranty

IA900WA or MA600 frame, MaxiSYS tablet with ADAS software, and Tesla Testkit cable sold separately.

Who Needs This

Glass shops and collision repair facilities servicing post-April 2019 Tesla vehicles will find this pattern an essential addition to their ADAS toolkit. Tesla’s presence on the road continues to expand, and shops that work on these vehicles need reliable recalibration capability to do the job properly. Paired with the correct frame and Tesla Testkit cable, the CSC0611-07 delivers a complete static calibration solution for all four covered Tesla models.
