Autel Standard Frame ADAS LDW + IA800

Description

Autel Standard Frame ADAS LDW + IA800 Package

Autel’s Standard Frame ADAS LDW + IA800 Package is a complete static calibration solution designed for shops that need to handle Lane Departure Warning (LDW) camera calibrations across a broad spectrum of domestic and import vehicles. The kit brings together the MA600 foldable calibration frame, the IA800 Intelligent Camera Positioning System, and a comprehensive library of vehicle-specific LDW target boards ÔÇö all in one package, so you’re not hunting down individual components from multiple sources to complete your setup.

Whether your operation handles windshield replacements, front-end collision repairs, or suspension and alignment work on any of the supported nameplates, in-vehicle static recalibration is now a required step ÔÇö not an optional one. This package positions your shop to handle that work on-site rather than subcontracting it elsewhere.

What This Package Is Designed to Do

Lane Departure Warning systems rely on forward-facing cameras ÔÇö typically positioned at the windshield or mounted near the rearview mirror ÔÇö to detect lane markings and alert drivers to unintentional lane drift. Whenever that camera is moved or disturbed ÔÇö whether from a windshield R&R, bracket removal, front-end collision damage, or a significant suspension alignment change ÔÇö the system requires a precise static recalibration using a correctly positioned target board. This package delivers that full capability for the following vehicle makes:

• Alfa Romeo
• Honda / Acura (multiple LDW generations)
• Hyundai / Kia (multiple LDW generations)
• Mazda
• Mercedes-Benz
• Mitsubishi
• Nissan / Infiniti (multiple LDW generations)
• Subaru
• Toyota / Lexus (multiple LDW generations)
• Volkswagen / Audi / Porsche
• Genesis

Everything Included in the Package

Every component required for a fully operational LDW calibration setup ships with this package:

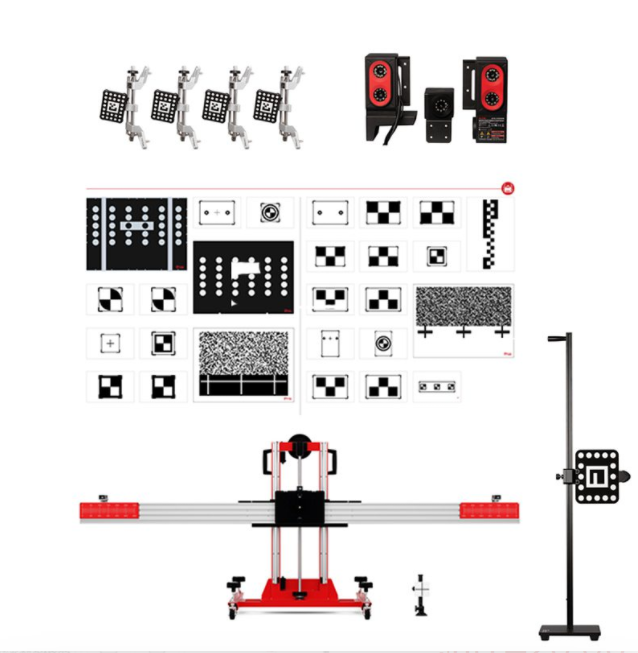

• MA600 Foldable Calibration Frame ÔÇö Autel’s standard CSC frame, engineered to position target boards at the precise height and distance in front of the vehicle
• IA800 Intelligent Camera Positioning System ÔÇö a wheel-mounted unit that accurately references the calibration frame to the vehicle’s centerline and camera location
• ADAS Calibration Software Upgrade ÔÇö software license that activates ADAS calibration functionality on your compatible MaxiSYS tablet
• LDW Target Case ÔÇö hard-shell case for safely storing and transporting target boards
• Target Board Holder ÔÇö secures target patterns to the calibration frame at the correct angle and elevation
• Pattern Board ÔÇö base board used in conjunction with vehicle-specific target patterns
• Wheel Clamps ÔÇö attach the IA800 positioning unit to the vehicle’s wheels for accurate referencing
• Laser Crossbar ÔÇö establishes the vehicle centerline needed for frame alignment
• L-Shaped Bracket (CSC1500/04) ÔÇö used to measure the correct distance from the front wheel for precise frame placement
• Laser Assist Mirror (CSC1500/06) ÔÇö simplifies undercarriage visibility during centerline setup
• Plumb Line (CSC1500/07) ÔÇö transfers the vehicle’s centerline to a floor reference point
• Laser-Assisted Board (CSC1500/08) ÔÇö works with the five-line or two-line laser to locate vehicle centerline
• Five-Line Laser (CSC1500/05) ÔÇö establishes a perpendicular axis from any reference point
• Two-Line Laser (CSC1500/03) ÔÇö aligns the calibration frame precisely to vehicle centerline
• One-Year Limited Warranty

Vehicle-Specific LDW Targets Included

Each included target is identified by its Autel CSC part number, with coverage spanning multiple LDW system generations per nameplate:

• Alfa Romeo: CSC0601/10
• Honda / Acura LDW I: CSC0601/05
• Honda / Acura LDW II: CSC0601/08-L, CSC0601/08-R, CSC0601/24-01
• Hyundai / Kia LDW: CSC0601/09
• Hyundai / Kia LDW II: CSC0601/07
• Hyundai / Kia LDW III: CSC0701/23
• Mazda LDW I: CSC0601/12
• Mazda LDW II: CSC0601/13-L, CSC0601/13-R
• Mercedes LDW I: CSC0601/02
• Mercedes LDW II: CSC0601/19
• Mitsubishi LDW I: CSC0601/22-L, CSC0601/22-R
• Nissan LDW II: CSC0601/03-L, CSC0601/03-R
• Nissan LDW III: CSC0601/04-L, CSC0601/04-R
• Nissan / Infiniti LDW I: CSC0601/06-L, CSC0601/06-R
• Subaru LDW I: CSC0601/14
• Subaru LDW II: CSC0601/17
• Toyota LDW II: CSC0601/15
• Toyota LDW IV: CSC0601/11-01
• Toyota / Lexus LDW I: CSC0601/11
• Toyota / Lexus LDW III: CSC0601/25
• VW / Audi / Porsche LDW I: CSC0601/01

The IA800: Why Precise Positioning Makes All the Difference

The IA800 Intelligent Camera Positioning System removes the uncertainty from calibration frame placement. Instead of depending on tape measures and floor marks as your only reference, the IA800 mounts to the vehicle’s wheels and uses that fixed reference point to precisely locate the calibration frame in relation to the camera. That precision matters: even minor misalignment of the target ÔÇö small enough to slip past the software verification step ÔÇö can leave the LDW system pointed slightly off-axis after calibration. A subtly miscalibrated system is more problematic than one flagged as uncalibrated. The IA800 eliminates that risk entirely.

Is This Package Right for Your Shop?

This configuration is the right choice for shops that:

• Replace windshields and want to bring LDW recalibration in-house rather than routing vehicles to a dealer or outside ADAS contractor
• Handle front-end collision repair or suspension work on any of the supported vehicle makes
• Need a single comprehensive kit that covers LDW calibration across Japanese, Korean, German, and Italian nameplates ÔÇö without purchasing individual target kits one at a time
• Already own a compatible MaxiSYS tablet (MS909, MS919, Ultra, or Elite) or are planning to add one to their tool lineup

Note: This package is purpose-built for LDW (Lane Departure Warning) camera calibration. Shops that also need to calibrate forward-facing radar systems (ACC/AEB), blind-spot monitoring sensors, or surround-view cameras will require additional targets not included in this kit. Contact us to discuss the right expansion path based on your vehicle mix.

Why Buy From ADAS Calibration Tools?

• Specialist ÔÇö our focus is exclusively on professional-grade diagnostic equipment, not consumer or entry-level tools
• Free shipping on this package
• Free tech support at 800-123-4567 ÔÇö our team can confirm compatibility with your existing MaxiSYS tablet before you purchase
• Full manufacturer warranty honored without friction
• Straightforward guidance ÔÇö if this package doesn’t match your vehicle mix, we’ll say so and steer you toward what does

Call 800-123-4567 for fast answers and expert help!
