Autel AVM Target and Bracket for Toyota CSC0804-03

Description

Autel AVM Target and Bracket for Toyota ÔÇö CSC0804-03

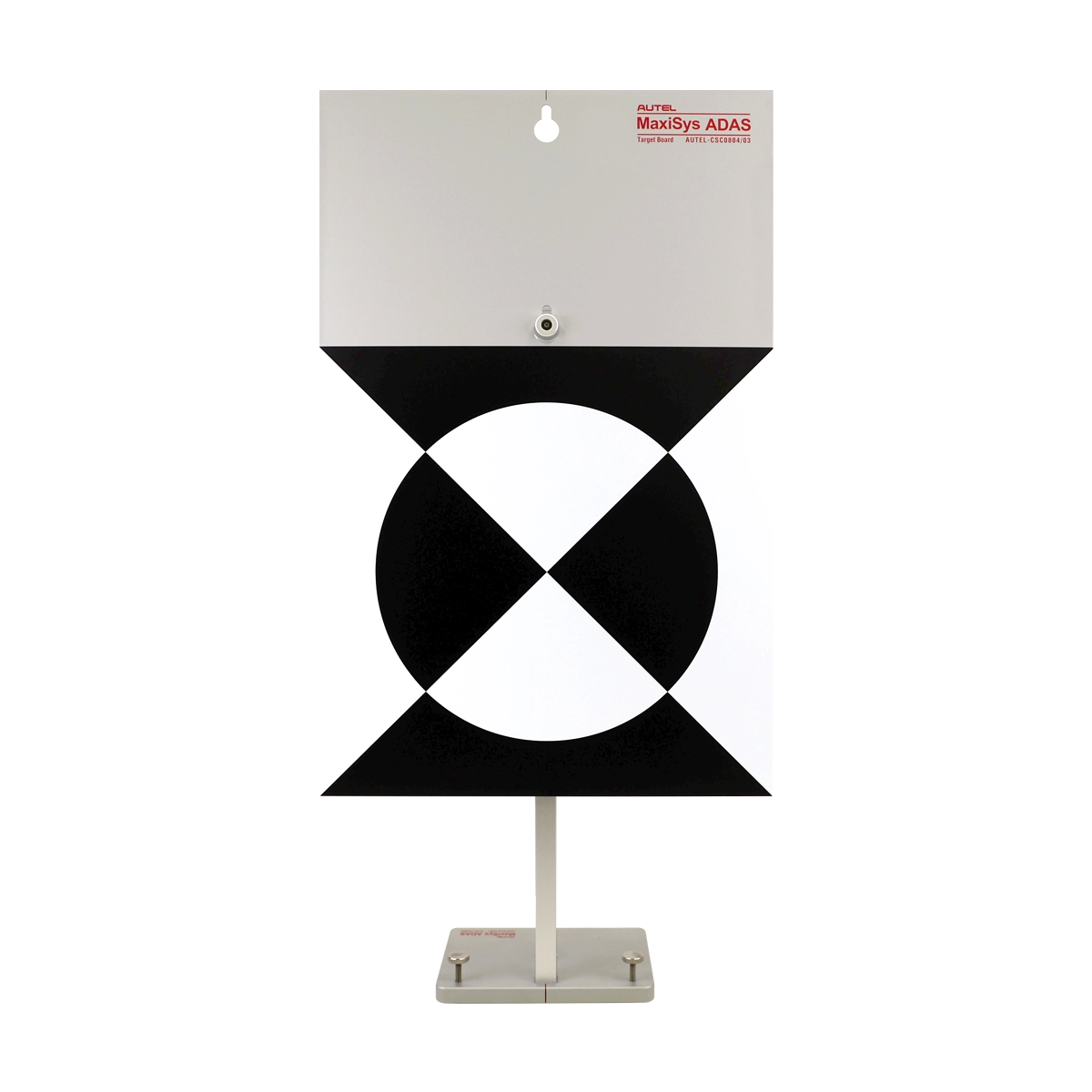

The Autel CSC0804-03 is an Around View Monitoring (AVM) calibration target and standing bracket designed for late model Toyota and Lexus vehicles. AVM systems rely on multiple wide-angle cameras ÔÇö typically mounted at the front, rear, and both sides of the vehicle ÔÇö to generate a 360-degree bird’s-eye view of the surrounding area. Whenever one of those cameras is replaced, repositioned, or otherwise disturbed, the AVM system must be recalibrated using physical ground-level targets placed at precise locations around the vehicle.

Each package contains one target and one standing bracket. During the calibration routine, targets are positioned at specified points around the Toyota or Lexus and the procedure is executed through the Autel diagnostic system in conjunction with your ADAS frame.

Vehicle Coverage

• Late model Toyota vehicles equipped with Around View Monitoring systems
• Late model Lexus vehicles equipped with Around View Monitoring systems

Supported Calibration

• Around View Monitoring (AVM) camera system calibration

How Many Targets Do You Need?

Target quantity is the most important purchasing consideration with AVM calibration setups. Every CSC0804-03 package contains one target and one bracket. Autel specifies the following for Toyota and Lexus AVM calibration procedures:

• Minimum configuration: 3 bracketed targets are required to run the calibration procedure
• Expedited configuration: 8 bracketed targets enable faster calibration with fewer repositioning steps

If you are building out AVM calibration capability for Toyota and Lexus from the ground up, plan on purchasing a minimum of 3 units. Shops handling higher volumes that want to reduce calibration time commonly run with 6ÔÇô8 targets, cutting down the number of times targets must be repositioned throughout the procedure.

What’s in Each Package

• 1x AVM Target (CSC0804-03)
• 1x Standing Bracket

Technical Details

• SKU: 804-03
• Part Number: CSC0804-03
• Warranty: One-year Limited Warranty from Autel
• Compatible with late model Toyota and Lexus vehicles

Note: An Autel ADAS frame and compatible scanner are required to perform AVM calibration and are sold separately. The total number of targets required depends on your workflow ÔÇö a minimum of 3 is needed, with up to 8 supported for expedited procedures.
