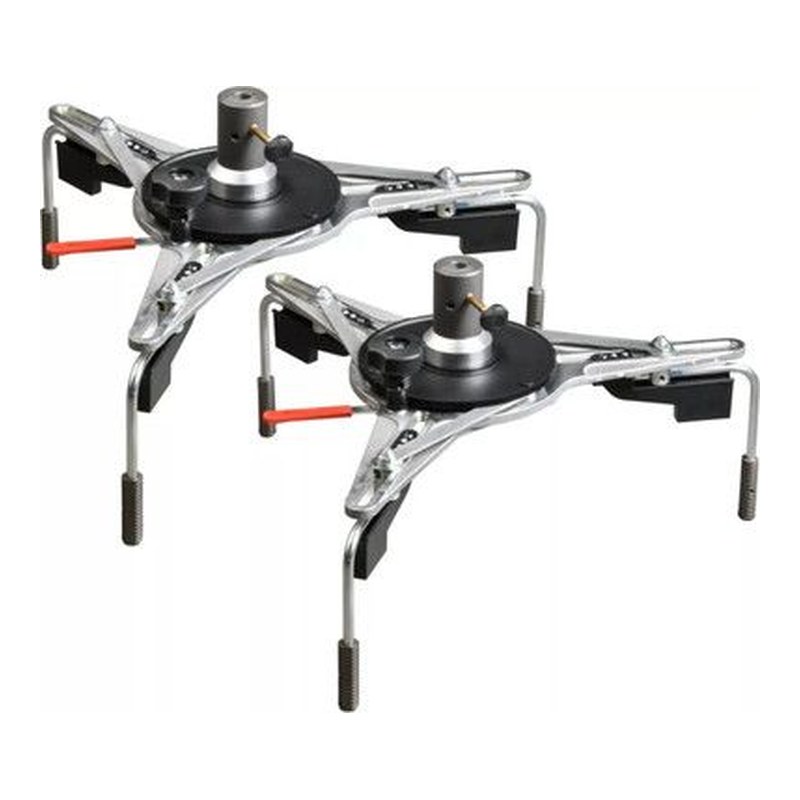

TEXA Pair of Self-centering clamps from 13ÔÇØ to 24ÔÇØ (attaching directly to the tire)

Description

TEXA Self-Centering Tire Clamps for RCCS ADAS Calibration (13″ÔÇô24″) ÔÇö Part 3912417

The TEXA self-centering tire clamps are the wheel-mounting components for the RCCS (Radar & Camera Calibration System) alignment setup. When performing ADAS calibrations ÔÇö whether for forward-facing cameras, ACC radar, blind-spot sensors, or 360-degree surround-view systems ÔÇö accurate target positioning relative to the vehicle’s true centerline is non-negotiable. These clamps are how that accuracy is established from the very first step.

Rather than mounting to the rim, they attach directly to the tire sidewall, which eliminates the need for wheel adapters, removes bolt pattern compatibility concerns, and means you’re not hunting for a different interface kit with every vehicle. The self-centering design applies consistent, equalized contact across the sidewall, which matters because the RCCS laser alignment system uses the clamp positions as its reference geometry to establish the vehicle centerline before any target board is deployed.

Role of These Clamps in the Calibration Workflow

The RCCS system must establish the vehicle’s position ÔÇö centerline and correct standoff distance for the calibration target ÔÇö before any sensor calibration can begin. The TEXA self-centering clamps initiate that process:

• Direct tire sidewall mounting ÔÇö fits tire diameters from 13″ to 24″, covering passenger cars, crossovers, light trucks, and most commercial vans
• Self-centering mechanism ÔÇö equalizes clamping pressure across the sidewall to locate true center without manual fine-tuning or estimation
• Laser reflector interface ÔÇö after mounting, the RCCS laser alignment system reads from these clamps to calculate the vehicle axis and correctly position the calibration frame
• No wheel adapter required ÔÇö direct tire contact removes the variability introduced by hub-centric versus lug-centric adapter fitment
• Sold as a pair ÔÇö one clamp for the left front wheel, one for the right front wheel, matching the standard TEXA RCCS front-axis reference configuration

Vehicle Coverage

The 13″ÔÇô24″ diameter range encompasses the great majority of vehicles encountered in a collision repair shop or dedicated ADAS recalibration bay: economy cars on 15″ÔÇô17″ tires, crossovers and SUVs on 18″ÔÇô20″, and most light-duty trucks on 20″ÔÇô22″. For specialty fitments outside that range, reach out before ordering ÔÇö but for a general-purpose ADAS shop, this pair addresses the everyday workload without additional adapters or secondary kits.

When You Need This Part Specifically

Part number 3912417 is the tire clamp pair sold as a standalone replacement or addition. This is the right order if:

• You already own an RCCS 2, RCCS 3, or RCCS 3 EVO frame and your current clamps are worn, damaged, or missing
• You’re equipping a second calibration bay and need a dedicated clamp set for the same frame type
• Your existing clamps don’t span the tire size range you’re regularly encountering (earlier kits sometimes carried a narrower coverage window)
• A clamp was damaged during a calibration job and you need an immediate direct replacement without waiting on a full system kit

If you don’t yet own an RCCS frame, this clamp pair alone is not sufficient to run a calibration ÔÇö you’ll also need the full RCCS structure, the appropriate OEM-specific target panels, and a TEXA Navigator interface running IDC5 software. Contact ADAS Calibration Tools and we’ll walk you through what a complete TEXA ADAS setup requires for your shop’s volume and vehicle mix.

Technical Specifications

• Part Number: 3912417
• Compatibility: TEXA RCCS 2, RCCS 3, RCCS 3 EVO calibration systems
• Tire diameter range: 13″ to 24″
• Mounting method: Direct tire sidewall contact, self-centering
• Quantity: Pair (2 clamps)
• Application: Front-axis wheel reference for RCCS laser alignment
