ATLAS AUTOMOTIVE EQUIPMENT Atlas Edge 501 – ATEATEDGE-501-4PT

Description

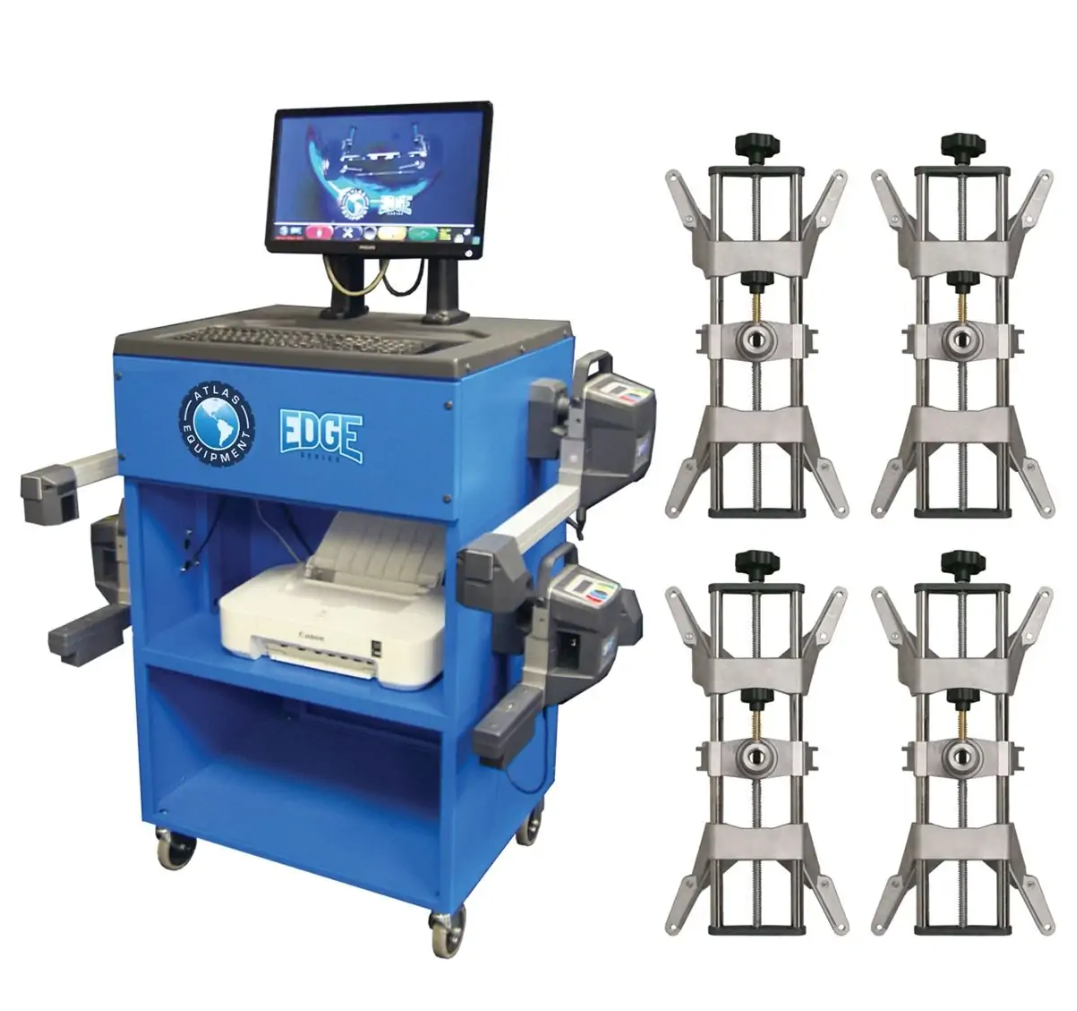

Atlas Edge 501 Wireless 8-Camera Wheel Aligner with 4-Point Clamps

Built for shops that demand consistent, accurate alignment results without the hassle of cable management, the Atlas Edge 501 is a professional-grade wireless wheel alignment system designed to streamline your alignment bay. With eight cameras capturing all four wheels at the same time, your technician gets a complete picture of the vehicle’s geometry from a single position ÔÇö no repositioning, no guesswork. Whether you’re running high alignment volume or simply ready to leave behind an outdated wired setup, the Edge 501 brings the kind of clean, efficient daily operation your bay deserves.

Priced at $12,999, the Edge 501 is a substantial commitment to a machine that will serve as the foundation of your alignment bay. Included 4-point clamps mount to the wheel rim rather than the tire, delivering repeatable target positioning that isn’t affected by tire sidewall variation. Wireless targets mean no cable runs between targets and console ÔÇö eliminating the cord-management headaches that slow down busy bays.

What’s in the Box

• Atlas Edge 501 Wireless Alignment System ÔÇö 8-camera imaging configuration
• 4-Point Rim Clamps (set of 4) ÔÇö wheel-rim mounted for accurate target positioning
• Wireless Alignment Targets ÔÇö no cables between the targets and the console
• ADAS Calibration Assistance Aid ÔÇö mounting bracket for ADAS target positioning (bracket sold separately; the assistance-aid feature is built into the machine)

8-Camera Imaging System

• Full 4-wheel simultaneous capture ÔÇö all alignment angles read at once, no repositioning required
• Wireless target communication ÔÇö reduces cable clutter and bay setup time
• Camera-based imaging ÔÇö high-resolution targets for accurate angle measurement across a wide vehicle range

4-Point Clamp System

• Rim-mount design ÔÇö clamps attach to the wheel rim, not the tire bead, eliminating sidewall runout error
• Adapts to a wide range of wheel sizes ÔÇö contact us for exact size range if you’re running oversized or specialty wheels
• Faster setup than older 3-point designs ÔÇö less adjustment time per vehicle

ADAS Calibration Assistance Aid

• Built-in ADAS positioning guidance ÔÇö the Edge 501 includes an ADAS Calibration Assistance Aid that helps position calibration targets relative to the vehicle
• Mounting bracket sold separately ÔÇö if you plan to perform ADAS work alongside alignments, budget for the bracket; contact us and we’ll identify the correct accessory for your configuration
• Pairs with dedicated ADAS target boards ÔÇö for forward camera, radar, and lane-departure sensor calibration after windshield replacement, suspension work, or collision repair

Who Needs the Edge 501

The Edge 501 is the right fit for a general repair shop or tire shop running steady alignment volume and wanting wireless operation, 4-point clamps, and the ability to assist with ADAS work ÔÇö all without purchasing a completely separate system. If you’re currently on a basic 4-camera wired machine and doing a handful of alignments per week, this is the natural next step. For shops running a dedicated high-volume ADAS-only operation or a dealership with heavy calibration demands, reach out to us ÔÇö we’ll help you determine whether the Edge 501’s assistance-aid feature covers your workload or whether a standalone ADAS frame is the better fit for your bay.

Technical Specifications

• Camera count: 8 (imaging-based wireless system)
• Clamp type: 4-point rim clamps, set of 4
• ADAS capability: Calibration Assistance Aid (bracket sold separately)
• Wireless: Yes ÔÇö targets communicate wirelessly to the console
• Shipping weight: 388 lbs
• Warranty: 1-year limited warranty on parts, materials, and workmanship; 90 days on wear items
